Autel MaxiCOM Ultra Lite/S
If you are looking for Autel Top & Best diagnosis scanner and have multi-language needs(besides English),Autel Maxicom Ultra Lite S is your best choice.
Upgraded of Autel Maxisys MS909/MS919(Near €4000),Ultra Lite S has the same diagnosis function as Autel Maxisys Ultra but cost less. Support✅ ECU Programming ✅ ECU Coding ✅Refresh Hidden Functions✅40+ Reset Service ✅OE-Level All Systems ✅ Cover 99% Vehicle in the Market ✅2 Years Free Update ✅21+ Languages ✅NO IP Restriction etc.
Top-hardware makes fastest diagnose: ✅Exynos 8895 Octa-core OS, ✅Android 7.0, ✅4G&256G Memory, ✅12.9 inch TFT-LCD/2732*2048 screen resolution ✅Dual WIFI 2.4 & 5G ✅Camera 16M+5M, Multi-App Navigation etc,which is a best choice for large-scale garages, workshops.
As the most ambitious tablet scanner developed by Autel, The Autel MaxiCOM Ultra Lite S is designed to diversify the knowledge pool of repairers, simplify the diagnostic process and bring out the maximum potential of each technician. Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize
Advanced ECU Programming & Coding
-
Online ECU Programming For BMW/BENZ - Autel Ultra Lite S comes with J2534 ECU programming device, which can diagnose, repair, and enhance vehicle performance. It provides the ability to optimize engine parameters, update software, and even retrofit vehicles with different configurations. It can read the existing data and programming information stored in the ECU, write new software or firmware into the ECU,provide the capability to rewrite the software within the ECU.
-
Online ECU Coding For Benz/BMW/Audi/VW/Porsche etc.- Ultra Lite S ECU coding capabilities, allowing users to perform a variety of tasks related to Engine Control Unit (ECU) coding. ECU coding refers to the process of reprogramming the control module to enable or disable certain features or functions in a vehicle. enhanced control over their vehicles, allowing them to customize features, improve performance, and adapt the vehicle to their specific needs.
Accessing Manufacturer-Specific Codes: Provide access to manufacturer-specific codes, allowing users to perform coding functions that are specific to particular vehicle makes and models. This includes accessing hidden features or customizing various parameters within the ECU.
Enabling/Disabling Vehicle Options: With Autel Ultra Lite S, It can enable or disable specific options or features within a vehicle. For example, It can activate or deactivate functions like auto-locking doors, daytime running lights, or seat belt reminders. This level of customization allows users to tailor their vehicle's behavior according to their preferences.
Performance Tuning: Autel Ultra Lite S offer performance tuning capabilities, allowing users to enhance the performance of their vehicles. This includes adjusting engine parameters, such as fuel-to-air ratio, ignition timing, boost pressure, or throttle response. By optimizing these settings, users can improve power output, fuel efficiency, or overall driving experience.
Coding Retrofits: Autel Ultra Lite S support coding retrofits, which means users can add new components or modules to their vehicles and code them into the existing ECU. For example, if a user wants to install aftermarket headlights, they can code the ECU to recognize and control the new headlights properly.
Note: ECU Programming/coding functions may vary due to different vehicle model,if you want to confirm ,please send the vehicle information to us to check first.
Autel Ultra Lite S 40+ Reset Services
Doing regular and routine maintenance on a modern car is impossible without a diagnostic system. Even the simplest procedures require the participation of an auto scanner. That's why Autel engineers have been working on them and making them as user-friendly as possible in the new MaxiCOM Ultra Lite S. Now you can easily do functions like:
-
Oil Reset: This function allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate.The Oil Life Reminder must be reset every time the oil is changed, so the system can calculate when the next oil change is required.
-
EPB: This function has a multitude of usages to maintain the electronic braking system safely and effectively. The applications include deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc
-
SAS: The SAS(Steering Angle Sensor Calibration) permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. Therefore, the front wheels and the steering wheel must be set exactly to the straight-ahead position before calibration. In addition, the vehicle identification number is also read from the instrument cluster and stored permanently in the steering angle sensor EEPROM. On successful completion of calibration, the steering angle sensor fault memory is automatically cleared.
-
DPF: The Diesel Particle Filter (DPF) function manages DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
-
Brake Bleed: ABS Brake Bleeding
-
Seat Calibration: Calibrate the memory in replaced or repaired seats
-
Airbag Reset: Resets the airbag data to clear the airbag collision fault indicator
-
A/F Reset: Set or learn Air/Fuel ratio parameters
-
Gearbox Reset: Help complete the gearbox self-learning to improve gear shifting quality
-
Suspension Reset: Adjust the vehicle body height sensor for level calibration
-
BMS: Battery registration and reset
More.......Reset functions may vary due to different vehicle models ,if you want a specific reset functions for your car ,please send us your vehicle information to double check.
Bi-directional Control (Active Test)
Ultra Lite S automotive diagnostic scanner comes with bi-directional control capability to perform active tests to determine the integrity of a system or parts like ABS, window, door, roof, by reading the ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay.
OE-Level All System Diagnosis
Ultra Lite S can Read and Erase Codes on all available vehicle systems,Exceptional OE-Level system coverage for all electronic systems,View Freeze Data and view and graph Live Data, Compatible with most EU,US,Asia vehicles, from year 1996 to 2024.
Read Codes: This function retrieves and displays the DTCs from the vehicle’s control system. The Read Codes screen varies for each vehicle being tested. On some vehicles, freeze frame data can also be retrieved for viewing.
Erase Codes: After reading the retrieved codes from the vehicle and certain repairs have been carried out, you can decide to erase the codes from the vehicle using this function.
Live Data:This function displays the real time PID data from ECU. Displayed data includes analog inputs and outputs, digital inputs and outputs, and system status information broadcast on the vehicle data stream.
Add-on Funtions with other Autel Tools:
Battery Test : With Autel BT506,The Battery Test BT506 allows you to perform in-vehicle battery test and out-vehicle battery test functions when it is connected to the MK900-BT and a battery. Enables technicians to view the health status of the vehicle's battery and electrical system.(Choose set with BT506)
Digital Inspection: With Autel MV108S, This allows you to examine difficult-to-reach areas normally hidden from sight,with the ability to record digital still images and videos, in a safe and quick way.(Choose set with MV108S)
Why Choose Autel MaxiCOM Ultra Lite S?
-
No IP Restriction -Global version, You can use MaxiCOM Ultra Lite S in any country/region.
-
2 Years Free Update: Original free update is 1 year ,now we send 1 year more! Total 2 years free update,Save over €1000 for update! (Note: The machine will come with default 1 year update ,after activate the machine ,the second year will be added within 3 days,if it does not change to 2 years ,please contact us after 3 days.)
-
99% Coverage on the Market - Autel MaxiCOM Ultra Lite S supports over 80+ EU/US/Asian vehicles. The Ultra Lite S has the best newer vehicle coverage , From year 1996 to 2024.
-
Solid Hardware & Software- Ultra Lite S With a winning combination of hardware and software, ensures user a smooth and efficient diagnostic experience.
- Online ECU programming for BMW/BENZ
- Online ECU Coding For Benz/BMW/Audi/VW/Porsche etc
- 40+ Reset functions
- Bi-directional Control
- OE-Level All System Diagnosis
- Can work with Autel BT506 and Autel MV108S
- 1 Year Official Warranty
- Life time Free technical support ,if you have any questions when use the machine ,please don't hesitate to contact our after sales service.
-
Multi-Language: English/French/Spanish/Portuguese/German/Polish/Italian/ Dutch/Russian/Japanese/Korean
Note: Machine default language is English,If you want to activate other language ,Please send us the S/N number after you receive the machine.

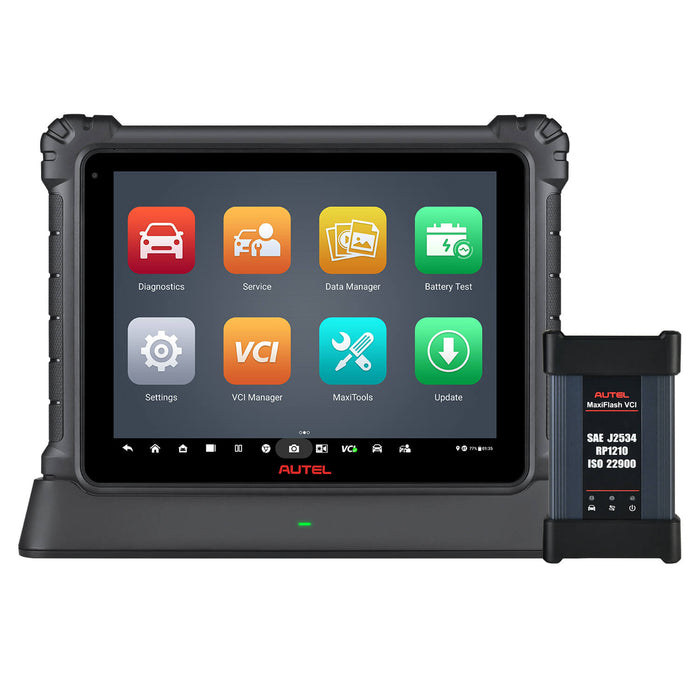

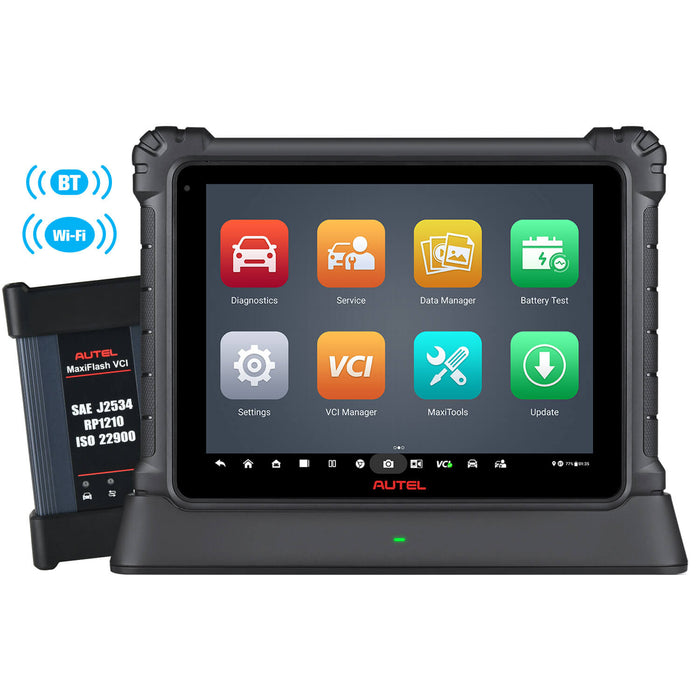

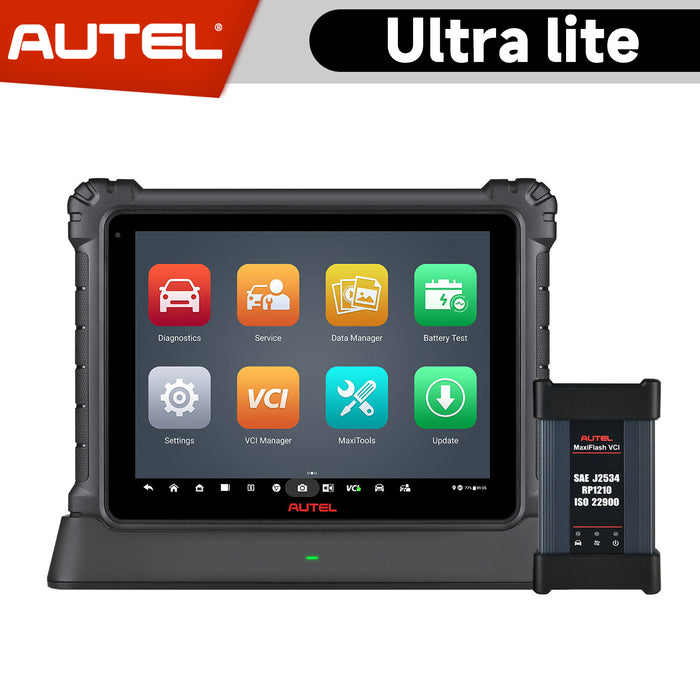

Autel MaxiCOM Ultra Lite S Detail Display:
Autel MaxiCOM Ultra Lite S Specification:
Operating System: |
Android 7.0 |
Processor: |
Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) |
Memory: |
4GB RAM 256GB On-board Memory |
Display: |
12.9 inch TFT-LCD with 2732 x 2048 resolution capacitive touch screen |
Connectivity: |
WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO),BT v.2.1 + EDR,GPS USB 2.0 (Two USB HOST Type A, one USB mini device),HDMI 2.0,SD Card (Support up to 256GB) |
Camera: |
Rear: 16 Megapixel, Autofocus with Flashlight Front: 5 Megapixel |
Sensors; |
Gravity Accelerometer, Ambient Light Sensor (ALS) |
Audio Input/Output: |
Microphone,Dual Speakers,3-Band 3.5 mm stereo/standard headset jack |
Power and Battery: |
18000mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C |
Input Voltage: |
12V/3A Adapter |
Operating Temp.: |
0 to 50°C (32 to 122°F) |
Storage Temp.: |
-20 to 60°C (-4 to 140°F) |
Dimensions (W x H x D): |
366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34") |
Weight |
2.18kg (4.81 lb.) |
Protocols |
DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock , BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |
Autel MaxiCOM Ultra Lite Package List:
- 1x MaxiCOM Ultra Lite S Main Unit
- 1x MaxiFlash VCI

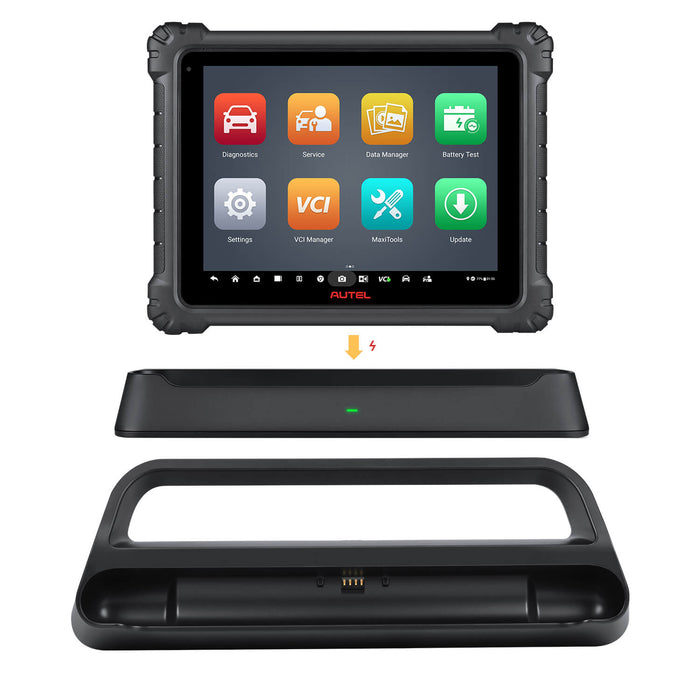

- 1x Docking Station
- 1x Main Cable V2.0
- 1x USB 2.0 Cable V2
- 1x AC/DC Adapter(12V)
- 1x Auxiliary Power Outlet Adapter
- 2x Spare Fuse 6x30mm
- 1x Clamp Cable
- 1x USB to Enthernet Adapter
- 1x Quick Reference Guide
- 1x Packing List
- 1x Soft Cloth
- 1x Carrying Case 650 x 185 x 430 mm
FAQ
Q: What's the difference between Autel Ultra Lite and Autel Ultra?
A: The machine hardware and diagnosis function are almost the same.But here are the difference:
1、VCI: Autel ultra with Maxiflash VCMI,Which means ultra can do oscilloscope/multimeter/waveform/can bus check. And Ultra lite with Maxiflash VCI,did not support these functions.
2、Language :Autel Ultra Lite support multi-language(English/French/Spanish/Portuguese/German/Polish/Italian/ Dutch/Russian/Japanese/Korean etc.) ,but Autel Ultra only support English
Q: If I buy a product, where will it be shipped from? Do I need to pay any other fees?
A: We have France, Germany, Spain and other warehouses in Europe. If you are located in the EU, the products will be dispatched from the local warehouse, the logistics time is 3-5 days, you don't need to pay other fees.
Q: Warranty ?
A: 1 Year
Q: When does the 2-year free upgrade start to count? Will normal use be affected if I do not purchase the upgrade service after 2-year?
A: The 1-year free upgrade service for each device starts when you register and log in to your account, and you can check the expiration time in the settings. After 1 year, if you do not continue to purchase the upgrade service, it will not affect your normal use of Autel devices, but you will not be able to update the latest upgraded functions.
Q: Technical support?
A: Yes,lifetime,we can provider technical support from autel official
Q: How to change language?
A: After you receive the package ,please send us the S/N number(on the machine back),and we will activate other language within 1 day(except weekends)
Q: How can I make sure the product will work properly in my vehicle? If something goes wrong, can I return it?
A: Our products can be used on any OBD2 compliant vehicle, with the difference that partial reset services and advanced features are only available on some brands of vehicles. So, to ensure your shopping experience, please send the VIN of your vehicle and your needs to our Email- we will reply you within one working day.
We guarantee 30 days no reason to refund, if it is not due to quality problems, you need to pay for the postage.
