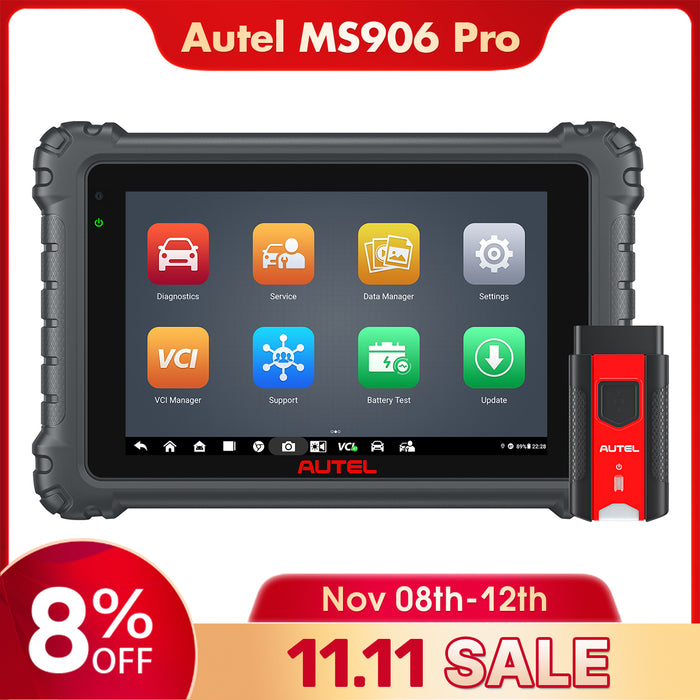

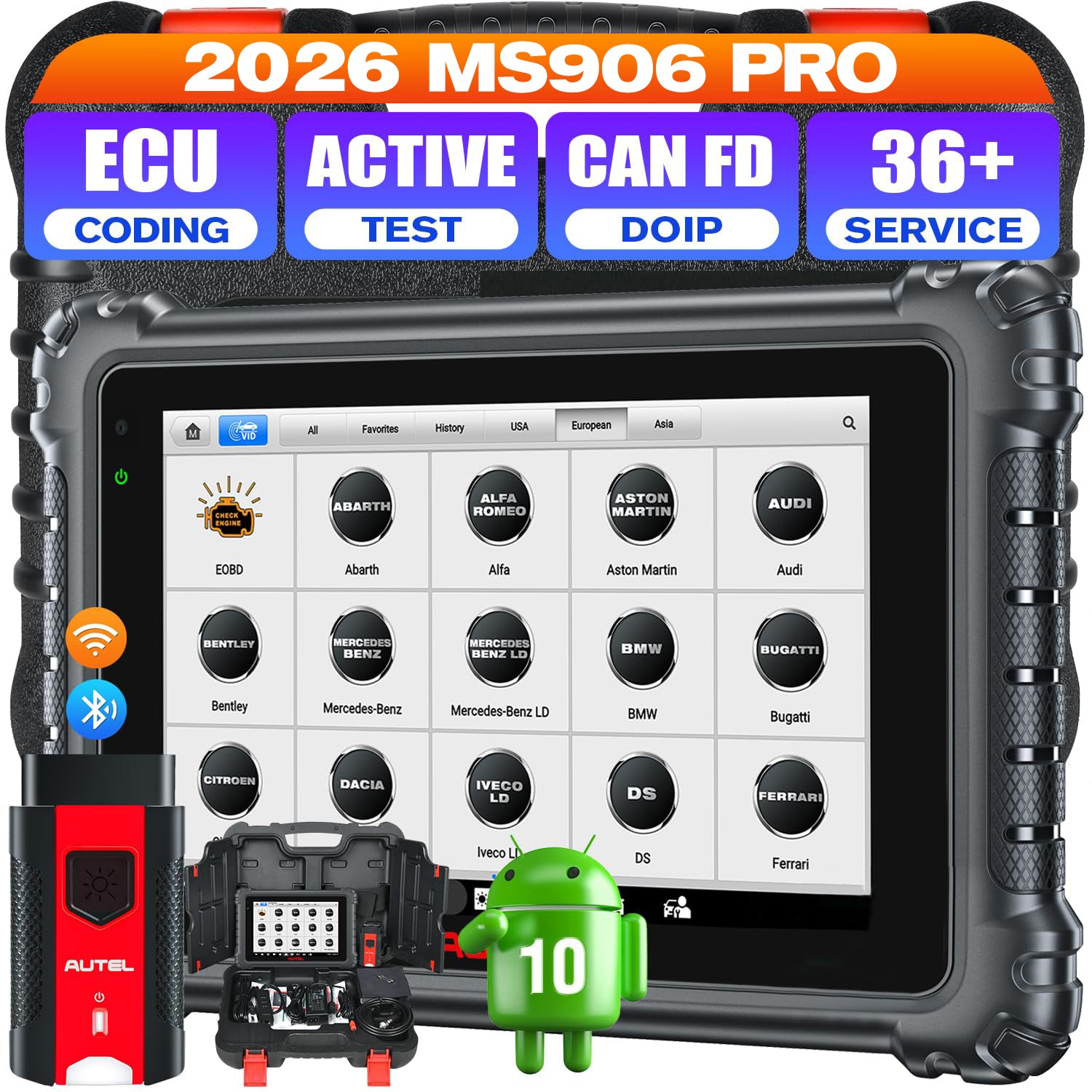

Autel MaxiSys MS906 Pro
As Autel newest diagnostic scan tool and upgraded version of MS906BT/MS906BT, Maxisys MS906 Pro has been upgraded from both hardware and software. Autel MS906 Pro is equipped with ✅Android 10.0 OS with ✅4G RAM & 128GB for super smooth operation✅8-inch 1920*1200 touchscreen✅16MP & 16MP double cameras✅11600mAh battery ✅ MaxiVCI V200 interface support the latest communication protocols including DoIP/CAN FD✅1 Year free update (after 1 year ,update price is about €399/year) ✅Multi-language(MS906 Pro will come with default language English ,Please send the S/N number to us to authorise other language)
Maxisys MS906 Pro is ✅Global version No IP block,So can be used worldwide and no limit for personal and workshop✅Can diagnosis most multi-brands vehicle in the market including EU/USA/Asian ✅Auto Scan all systems to read code/erase code/View Freeze Frame and Live Data ✅36+ reset service like Oil reset/EPB/SAS/DPF/Brake Bleed/BMS etc.✅Advanced ECU Coding ✅Bi-Directional Control ✅Work with Autel MV108S digital camera ,BT506 for battery test,MP408 for oscilloscope.
Advanced ECU Coding
Autel MS906 Pro professional auto diagnostic tool comes with advanced ECU coding function. ECU Coding allows you to establish a data link to the electronic control system of the test vehicle via the VCI device for vehicle diagnosis, service or coding. You can operate functional tests, retrieve vehicle diagnostic information such as trouble codes, event codes and live data, and perform ECU coding, for various vehicle control systems, such as engine, transmission, ABS and more. Please not online ECU Coding is mainly for BMW/Audi/Porsche/VW.
Accessing Manufacturer-Specific Codes: Provide access to manufacturer-specific codes, allowing users to perform coding functions that are specific to particular vehicle makes and models. This includes accessing hidden features or customizing various parameters within the ECU.
Enabling/Disabling Vehicle Options: Users can enable or disable specific options or features within a vehicle. For example, they can activate or deactivate functions like auto-locking doors, daytime running lights, or seat belt reminders. This level of customization allows users to tailor their vehicle's behavior according to their preferences.
Performance Tuning: Offer performance tuning capabilities, allowing users to enhance the performance of their vehicles. This includes adjusting engine parameters, such as fuel-to-air ratio, ignition timing, boost pressure, or throttle response. By optimizing these settings, users can improve power output, fuel efficiency, or overall driving experience.
Coding Retrofits: Support coding retrofits, which means users can add new components or modules to their vehicles and code them into the existing ECU. For example, if a user wants to install aftermarket headlights, they can code the ECU to recognize and control the new headlights properly.
Full Systems Diagnosis
MS906 Pro can Read and Erase Codes on all available vehicle systems,Exceptional OE-Level system coverage for all electronic systems,View Freeze Data and view and graph Live Data, Compatible with U.S., European vehicles, from 1996 to newer 2026.
Read Codes: This function retrieves and displays the DTCs from the vehicle’s control system. The Read Codes screen varies for each vehicle being tested. On some vehicles, freeze frame data can also be retrieved for viewing.
Erase Codes: After reading the retrieved codes from the vehicle and certain repairs have been carried out, you can decide to erase the codes from the vehicle using this function.
Live Data:This function displays the real time PID data from ECU. Displayed data includes analog inputs and outputs, digital inputs and outputs, and system status information broadcast on the vehicle data stream.
36+ Advanced Hot Reset Functions
Autel MS906 Pro bluetooth scanner is loaded with 36+ reset functions for in-depth and comprehensive repairing & maintenance.
Oil Reset - This function allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate.The Oil Life Reminder must be reset every time the oil is changed, so the system can calculate when the next oil change is required.
EPB - This function has a multitude of usages to maintain the electronic braking system safely and effectively. The applications include deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc
SAS - The SAS(Steering Angle Sensor Calibration) permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. Therefore, the front wheels and the steering wheel must be set exactly to the straight-ahead position before calibration. In addition, the vehicle identification number is also read from the instrument cluster and stored permanently in the steering angle sensor EEPROM. On successful completion of calibration, the steering angle sensor fault memory is automatically cleared.
DPF - The Diesel Particle Filter (DPF) function manages DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
Seat Calibration: Calibrate the memory in replaced or repaired seats
Airbag Reset: Resets the airbag data to clear the airbag collision fault indicator
A/F Reset: Set or learn Air/Fuel ratio parameters
Gearbox Reset: Help complete the gearbox self-learning to improve gear shifting quality
Suspension Reset: Adjust the vehicle body height sensor for level calibration
Brake Bleed - ABS Brake Bleeding
BMS - Battery registration and reset
More reset functions like Seats, Odometer, Injector, CHG tire size, TEC Learn, Suspension, Throttle, WIN OR ROOF, Lang Change, Headlamp.
Note: The reset service may vary to different vehicle,If you want to make sure it can meet your vehicle needs ,please send your vehicle model/year/VIN number to us to check.
Bi-Directional Control (Active Test)
MaxiSys MS906 Pro automotive diagnostic scanner comes with bi-directional control capability to perform active tests to determine the integrity of a system or parts like ABS, window, door, roof, by reading the ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay.
Add-on Functions
Maxisys MS906 Pro is a diagnostic scanner with various interfaces that can access to more Add-on like Inspection Camera, HDMI Projector, Phone, PC, USB Memory Stock, Headset, Oscilloscope, Extend SD Card etc.
- MS906 Pro connects to a MV108S inspection camera and turns into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.
- MaxiSys MS906 Pro works with Autel MP408 oscilloscope,providing you an insight to the inner workings of a vehicle’s electronic circuits. Featuring the user-friendly UI design combined with the unrivalled hardware specs, is able to measure and test virtually all the electrical and electronic components and circuits in any modern vehicles.
- Autel automotive tool MS906 Pro works with Battery Tester(BT506) to check 12V vehicle battery and view the health status of the vehicle's battery and electrical system.
Autel MaxiSys MS906 Pro Specification:
| Operating System: |
Android 10.0 |
| Processor: |
Qualcomm 660 Octa-core |
| Memory: |
4/128GB |
| Display: |
8.0" LED capacitive touch screen with 1920x1200 resolution |
| Connectivity: |
• Wi-Fi (802.11 b/g/n)USB: 2.0, Mini USB 2.0 Wireless BT V2.1+EDR Class1, HDMI 1.4a SD Card (support up to 32 GB) |
| Camera (rear): |
Front: 16 Megapixel
Rear: 16 Megapixel
|
| Sensors; |
Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output: |
• Microphone • Single Speaker • 3-Band 3.5 mm stereo/standard headset jack |
| Power and Battery: |
11 600 mAh 3.7 V lithium-polymer battery
Charging via 12 V AC/DC power supply |
| Input Voltage: |
12 V (9-35 V) |
| Power Consumption: |
5 W |
| Operating Temp.: |
-10 to 55°C (14 to 131°F) |
| Storage Temp.: |
-20 to 70°C (-4 to 158°F) |
| Dimensions (W x H x D): |
270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”) |
| Weight |
NW: 1.05 kg (2.3lb.) |
Autel MaxiSys MS906 Pro Package List
- 1x Maxisys MS906 Pro main unit
- 1x MaxiVCI V200
- 1x AC/DC Adapter (12V)
- 1x Type C USB Cable
- 1x Cigarette Lighter Adapter
- 2x Spare Fuse(6*30mm)
- 1x USB to Ethernet Adapter
- 1x Soft Cloth
- 1x User Manual
- 1x Packing List
- 1x Carrying Case
- 1x Quick Reference Guide
FAQ
Q: If I buy a product, where will it be shipped from? Do I need to pay any other fees?
A: We have France, Germany, Spain and other warehouses in Europe. If you are located in the EU,the logistics time is 3-5 days, Free shipping, you don't need to pay other fees.
Q: When does the one-year free upgrade start to count? Will normal use be affected if I do not purchase the upgrade service after one year?
A: The one-year free upgrade service for each device starts when you register and log in to your account, and you can check the expiration time in the settings. After one year, if you do not continue to purchase the upgrade service, it will not affect your normal use of Autel devices, but you will not be able to update the latest upgraded functions.
Q: How can I make sure the product will work properly in my vehicle? If something goes wrong, can I return it?
A: Our products can be used on any OBD2 compliant vehicle, with the difference that partial reset services and advanced features are only available on some brands of vehicles. So, to ensure your shopping experience, please send the VIN of your vehicle and your needs to our Email--👉Contact us👈, we will reply you within one working day.
We guarantee 30 days no reason to refund, if it is not due to quality problems, you need to pay for the postage.
