Autel Maxisys MS908S Pro
MS908S Pro Diagnostic Platform bases on the revolutionary Android multitasking operating system, utilizes the powerful Cortex A7+A15 six-core processor, and equips with 9.7-inch LED capacitive touch screen.
Supporting J2534 ECU Programming Device is capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues.
MS908S Pro is an ideal tool for a truly trouble-free diagnosis of a maintenance plant by quickly, efficiently and effectively diagnosing automotive faults, managing customer data, and standardizing business processes.
Why Choose Autel Maxisys MS908S Pro?
-
The Most Advanced EU Diagnostic Tool - MS908S Pro is the most advanced diagnostic product sold in Europe, covering most models, and supporting a number of necessary services and advanced functions, such as ECU Coding & Programming, Bi-Directional Control and etc
-
Worldwide Coverage - The MS908S Pro automotive diagnostic tablet comes with extensive vehicle coverage and can work on 100+ US, European & Asian makes and models to scan all available systems
-
More Special Services - MS908S Pro has 31+ service function options, mainly including Oil Reset, EPB service, TPMS ID Relearn, ABS Auto Bleed, SAS Calibration , DPF Regeneration and etc
-
Extendable Design - Paired with Autel MaxiScope MP408, Autel MaxiVideo MV108 to Detect Unseen Details; With MaxiTPMS TS508 for Comprehensive TPMS Problems;With MaxiBAS BT506 for Comprehensive Battery Test.
-
1-Year Free Software Update - After you register and log in, you can enjoy a free software upgrade for one year. After one year, if you do not choose to continue to purchase the upgrade service, it will not affect the normal use of the device
- Language: Only support English
-
Professional Costumer Services - Respond and solve your problems within 8 hours
Autel MaxiSys MS908S Pro Main Features
- Extraordinarily powerful Cortex A7+A15 six-core processor.
- 9.7” 2048x1536 LED-backlit glossy Multi-Touch capacitive display with IPS technology
- Internal reliable 64GB On-board Memory for better performance.
- Built-in 8-megapixel rear camera with autofocus and flashlight.
- The VCI connects to the main unit wirelessly with up to 70 meters working range.
- 802.11 a/b/g/n/ac Wi-Fi to access your favorite web resources.
- Unique ergonomic design with rubberized outer protection and a rugged internal housing.
- Open source Android Operating System for fast boot-up and multitasking.
- Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes.
- Exceptional OE-Level system coverage for all electronic systems.
- Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
- Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes.
- Built-in rechargeable lithium-polymer battery for up to 7.5 hours of continuous operation.
- Equip with J2534 ECU Programming Device for replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues.
Autel MaxiSys MS908S Pro Full Systems Diagnosis
The full system diagnostics give you a key to access every on-board system to root out those invisible problems such as PCM, ECM, EPS, PDM, BCM, TPM, SCCM, RADIO, etc. The Autel MaxCOM MK908 can read and clear codes on all systems and subsystems so as to present you a clear picture of multiple sensors in different formats. And also it empowers you to read ECU information, live data and conduct active test.
- Read DTCs – It can access to the depth of every onboard systems to read and analysis the DTCs
- Clear DTCs – After tune-up or changing certain components, it can clear the DTCs hidden in the ECU and kill the lights on the dashboard.
- ECU Information – get the retrieved ECU information in detail.
- Live Data Stream – a valuable reference to determine the specific problems accurately.
Autel MaxiSys MS908S Pro Special Reset Services
Simply accessing the diagnostic modes via AutoVIN or Control Unit, and you're able to perform diagnosis over all the systems on the vehicle' s ECU in order to locate fault systems and retrieve DTCs.
The Service section is specially designed to provide quick access to the vehicle systems for various scheduled service and maintenance tasks includes: Brake Bleed, Oil Reset, EPB, TPMS Sensor Activate, BMS, DPF, Immo Keys, Injector, SAS, Suspension, Throttle, WIN DR ROOF, Seats, Odometer, Lang Change, CHG Tire Size, TEC Learn, ABS/SRS, Cylinder, Turbocharging, Limit, Clutch, Trans Adaption, Airbag Reset, Headlamp
-
Oil Reset: Reset the oil change calculator in the engine and automatic transmission
-
EPB: Replacement of brake pads on vehicles with an electric parking brake
-
SAS: Adaptation of the sensor to the angular position of the steering wheel
-
DPF: Regeneration of diesel particulate filter
-
Brake Bleed: ABS Brake Bleeding
-
BMS: Battery registration and reset
- Seats, Odometer, Injector, CHG tire size, TEC Learn, Suspension, Throttle, WIN OR ROOF, Lang Change, Headlamp.
Notice: The reset service feature is not available on all models. Pls send VIN and your needs to 👉Contact us👈to check.
Autel MaxiSys MS908S Pro Advanced Functions:
-
Full Bi-Directional Control:
The diagnostic scan tool supports bi-directional control to check the vehicle operating conditions. The bi-directional control of the ECM in the Component Test enables the MS908s Pro to transmit control commands to operate the vehicle systems. Like ABS, window, door, roof, by reading the ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay.
-
ECU Programming & ECU Coding:
Autel diagnostic scanner MS908S Pro comes with J2534 ECU programming device & BMW Ethernet Cable(For F-Series Coding & Programming), which is capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new Benz/BMW ECUs and fixing software-controlled drivability issues and emission issues, update the computer software on the vehicle to the latest version.
Note: ECU Programming only for BMW/Mercedes Benz
Autel MaxiSys MS908S Pro Add-On Functions:
To Better serve the users, the diagnostic tool is equipped with a rich array of features and functions in addition to the Diagnostic and Service functions, including Remote Desk, MaxiFix, Shop Manager, Digital Inspection, MaxiScope, etc.
-
Remote Desk: With the simple, fast and secure remote control interface, you can receive ad-hoc remote support from Autel' s support center, colleagues, or friends, by allowing them to control your MaxiSys tablet on their PC via the TeamViewer software.
-
MaxiFix: This is an additional feature in the cloud which enables users to network and access a database of procedures, repair and diagnostic tools. You are able to interact with fellow technicians and share knowledge via MaxiFix.
-

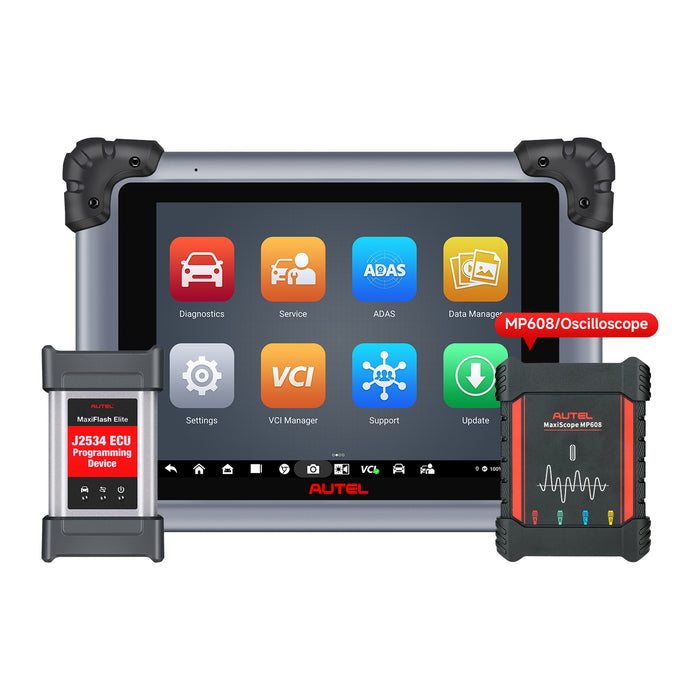

Digital Inspection & MaxiScope: The diagnostic scan tool MaxiSys MS908S Pro can also be used in conjunction with the automotive oscilloscope Autel MP408 to perform electrical and electronic circuit testing and monitor signal activity, and it also supports performing a close vehicle inspection with the Autel digital inspection camera MV105/MV108.
Autel MaxiSys MS908S Pro Vehicle Coverage
-
For Asian: Acura, Daihatsu, Hyundai, Infinit, Kiat, Mazda, Nissan, Scion, Subaru, Toyota, Manhindra, Proton, Daewoo, Honda, HyundaiCV, Isuzu, Lexus, Mitsubishi, Samsung, Ssang Yong, Suzuki, Fuso, Perodua, Tata...
-
For European: VW, Abarth, Aston Martin, MINI, Sprinster, SKODA, Citroen, Fiat, Lancia, Maserati, Opel, Porsche, SAAB, Vauxhall, Seat, Bugatti, Audi, BMW, Alfa, Benz, Maybach, Ferrari, Jaguar, Land Rover, Peugeot, Renault, Smart, Volvo, Lamborghini, Bentley, Rolls-Royce, VW CV, Dacia, LT3...
-
For USA: Chrysler, Dodge, Ford, GM, JEEP
Autel MaxiSys MS908S Pro Detail Display
Autel MaxiSys MS908S Pro Specifications
| Operating System: |
Android™ 4.4.2, KitKat |
| Processor: |
Samsung Exynos Six-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15) |
| Memory: |
2GB RAM & 64GB On-board Memory |
| Display: |
9.7 inch LED capacitive touch screen with 2048x1536 resolution |
| Connectivity: |
Wi-Fi (802.11 a/b/g/n/ac); USB: 2.0; BT v.2.1 + EDR; SD Card (Support up to 32GB); HDMI |
| Camera (rear): |
8.0 Megapixel, AF with Flashlight |
| Sensors; |
Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output: |
• Microphone • Dual Speakers • 3-Band 3.5 mm stereo/standard headset jack |
| Power and Battery: |
11000 mAh 3.7 V lithium-polymer battery
Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C |
| Input Voltage: |
12 V (9-24 V) |
| Power Consumption: |
6.5 W |
| Operating Temp.: |
-10 to 55°C (14 to 131°F) |
| Storage Temp.: |
-20 to 70°C (-4 to 158°F) |
| Dimensions (W x H x D): |
300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”) |
| Weight |
NW: 1.42 kg (3.13 lb.) GW: 8.052 kg (17.75 lb.) |
| Protocols |
ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW,SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN,GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939,SAE J1708, Fault-Tolerant CAN |

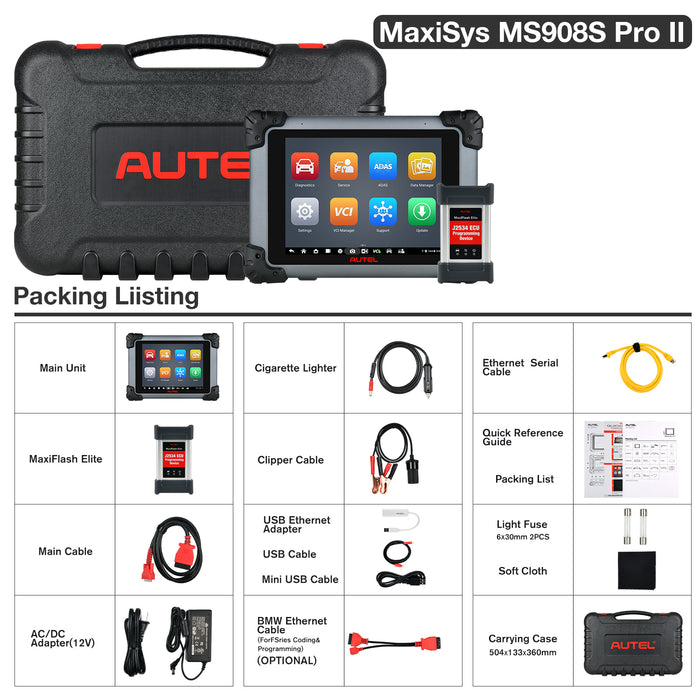

Autel MaxiSys MS908S Pro Package List:
- 1x MS908SP Main Unit
- 1x USB Ethernet Adapter
- 1x Standard 2.0 USB Cable
- 1x BMW Ethernet Cable
- 1x Main Cable – 1.5 m in length
- 1x Mini USB Cable
- 1x Ethernet Serial Cable
- 1x AC/DC External Power Adapter
- 1x Clipper Cable
- 1x Lighter Fuse
- 1x Cigarette Lighter
- 1x Adapter for Chrysler-16 (America Only)
- 1x Adapter for GM/Daewoo-12
- 1x Adapter for PSA-2
- 1x Adapter for Fiat-3
- 1x Adapter for BMW-20
- 1x Adapter for Benz-38
- 1x Adapter for Kia-20
- 1x Adapter for Mitsubishi/Hyundai-12+16
- 1x Adapter for Nissan-14
- 1x Adapter for Honda-3
- 1x Adapter for Benz-14 (for EU only)
- 1x Adapter for VW/AUDI-2+2
