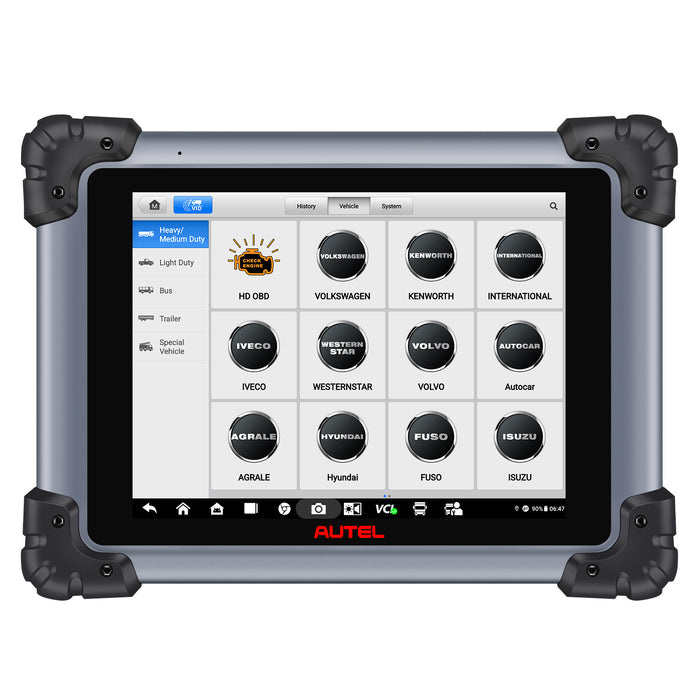

Autel MaxiSys MS908CV II --COMMERCIAL VEHICLE DIAGNOSTICS & SERVICE TABLET
The MaxiSys MS908CV II is an evolutionary smart solution for specialized automotive diagnosis. Utilizing the faster ✅Android 10 operating system✅ a larger storage capacity 128GB on-board memory ✅a long-lasting 11,000mAh battery ✅ 9.7-inch LED capacitive touch screen ✅16.0 megapixels rear camera.
With the latest technology and updates, the MaxiSys MS908CV II is designed to handle a wide range of commercial vehicle and heavy-duty applications (class 1-9), ensuring future-proofing power. This heavy-duty truck scanner now offering ✅ 64+ services. It also includes an impressive addition of ✅3000+ active tests, enhancing its ability to perform advanced diagnostics. Furthermore, the MS908CV II has been optimized for multitasking, with enhanced ECU coding and ✅J2534 programming functionalities.
Top Reasons to Choose Autel MaxiSys MS908CV II in 2025
-
Advanced ECU Coding: Adjust vehicle road speed, flash CV personalized functions, repair failing coding processes, etc
-
64+ Hot Services: Autel MS908CV II features 39+ services & 25+ adaptions for 150+ brands that are easy to navigate and more outstanding than other CV diagnostic scan tools.
-
OE All-System Diagnosis: MS908CV II conducts simplifying all procedures as the priority, runs full checks for complex CV systems like ECAS, ABS/EBS, DPF/SCR, reads DTCs to locate the fault, clears DTCs to turn off the MIL, retrieves live data to learn about the details.
-
Active Test: 3000+ active tests act more accurately but quicker problems location without bulky parts disassembling.
-
2025 Top Truck Scanner: Wireless BT with 230+ meters working range. The complete kit provided includes various adapters that are designed for diagnosing aging class-3 CV vehicles
-
Wider Coverage: Widely apply to CV vehicles including Light/Heavy duty trucks (class 1-9), trailers, buses, special vehicles, and newly added agricultural & construction vehicles.
-
Pre & Post Scan: Pre-Post Scanning will record vehicle status before and after diagnostics, helping you to locate problems and list suitable repair plans.
-
Extensive Functions: Auto Scan 2.0, WIFI Print, Cloud Report Management, etc.
-
Services for Truck: DPR Regeneration, Injector Cutout Tests, Injector Coding, Oil Light Service, etc.
-
1 Yeas Free Update & Warranty: Scanner comes with one year free software update and 1 year free warranty.
Advanced ECU Coding & J2534 Programmer
The MS908CV II, like the MS909CV, offers advanced CV ECU coding not supported by regular diagnostic tools. It allows you to adjust vehicle road speed, personalize CV functions, and fix failing coding processes. The J2534 programmer designed for CV helps improve drivability and fuel efficiency, erase fault codes, and program the latest software without expensive OE scanners, functioning at an OEM level.
Coding Backup/ Reserve Date
- Refresh Hidden Function
- Customize OE-Setting
- Online Parametric Configuration
- Improve Driving Comfortability
- Rematch Module Replacement/Calibration
J2534 Programming
- Pair with J2534 pass-thru device
- Update ECU software
- Change Re-programmed Option
Bi-Direction Control & 3000+ Active Test
Unlike most bluetooth diesel diagnostic tool scanner for commercial vehicles that can only perform limited bi-directional control, this Autel Maxisys CV MS908CV II offers a comprehensive 3000+ active tests covering 99% mainstream CVs, e.g. Cylinder Cut Out Test, Cylinder Compression Test, On-board Electronic Components Test.
39+ Hot Service & 23 Adaptation Functions
MaxiSys MS908CV II offers over 39 common reset services and 23+ adaptation functions to cater to various daily maintenance needs. With this professional diagnostic tablet designed for HD and trucks, you can perform adaptations without the need to visit a local workshop, saving yourself valuable time and money.
39+ Most Daily Used Functions:
-

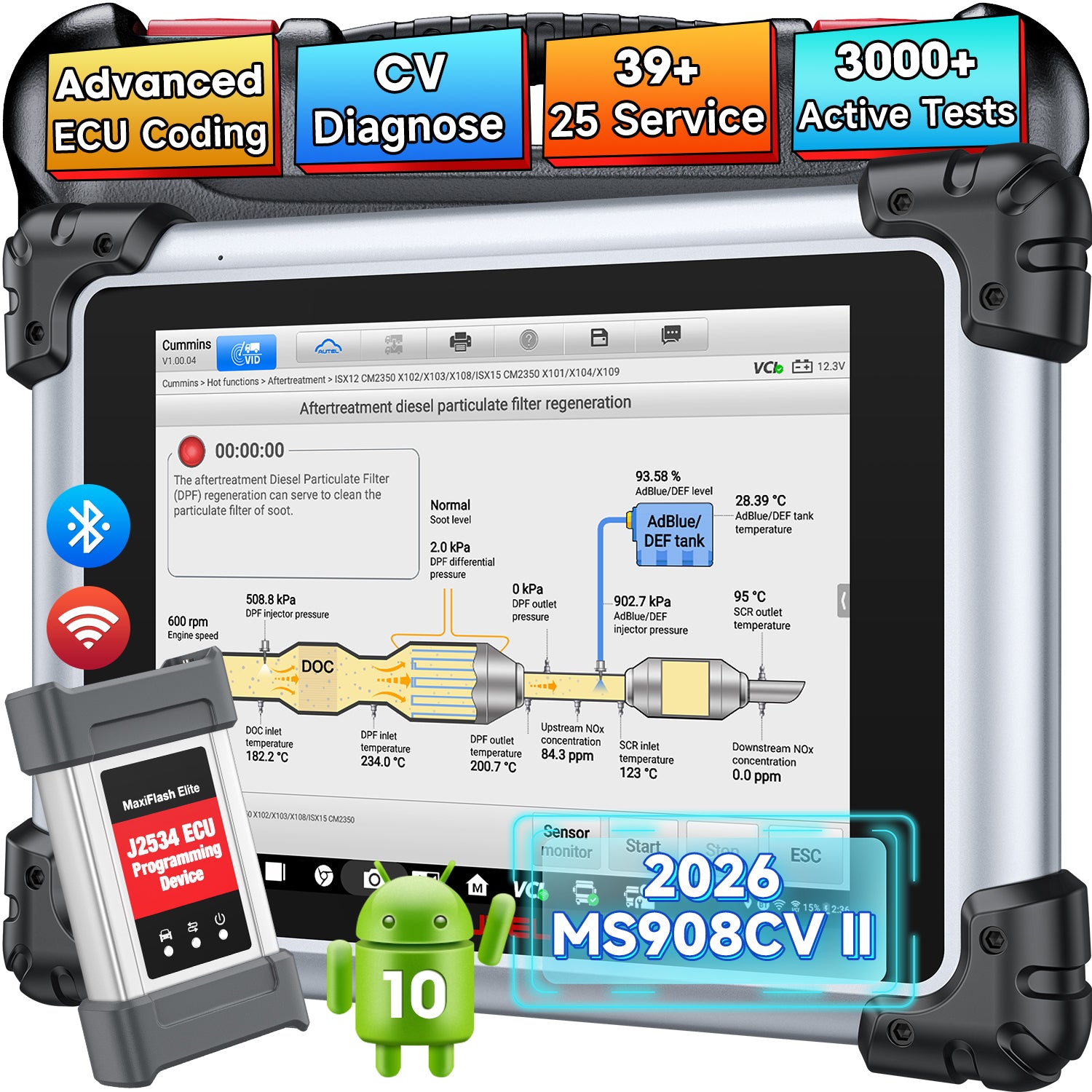

DPF Regeneration: Clears particulate matter from the Diesel Particulate Filter (DPF) through continuous combustion oxidation mode to stabilize the filter's performance. The Autel MS908CV II provides a developed DPF system diagram, allowing customers to monitor the sensor status during the regeneration process.
-
ABS Bleeding: Removes air from the brake system to restore its braking sensitivity.
-
BMS Reset: Resets the monitoring unit of the car battery after replacing the battery or battery monitoring sensors.
-
Brake Reset: Helps reset the brake sensor after changing or prior to changing the brake pads.
-
Injector Coding: Matches new injectors to the vehicle's Engine Control Unit (ECU) after replacement.
-
Oil Reset: Sets the oil light to zero and configures the next service mileage after an oil change.
-
Air Suspension: Adjusts the height of the vehicle body for vehicles equipped with air suspension systems.
-
Throttle Matching: Initializes the throttle actuators to restore learned values stored in the ECU to the default state.
- More......
23+ Reset functions:
DOC/D_P-F Replacement Reset, Fuel Pressure Adaptation Reset, Injector CEOM Reset, O2 Sensor Calibration, Injection Quantity Adjustment, Aftertreatment DP-F Regeneration, DSI System De-Aeration, MAF Sensor Calibration, Parameter Setting, Aftertreatment Maintenance, Aftertreatment SCR Catalyst Cold Soak Override, Boost Calibration, Timing Calibration and etc.
OE-Level Full System CV Diagnosis
MaxiSys MS908CV II is designed to simplify all types of work, with faster auto scan 2.0,it can Read and Erase Codes on all available vehicle systems,Exceptional OE-Level system coverage for all electronic systems,View Freeze Data and view and graph Live Data.
Read Codes: This function retrieves and displays the DTCs from the vehicle’s control system. The Read Codes screen varies for each vehicle being tested. On some vehicles, freeze frame data can also be retrieved for viewing.
Erase Codes: After reading the retrieved codes from the vehicle and certain repairs have been carried out, you can decide to erase the codes from the vehicle using this function.
Live Data:This function displays the real time PID data from ECU. Displayed data includes analog inputs and outputs, digital inputs and outputs, and system status information broadcast on the vehicle data stream.
Wide CV Coverage
150+ Light Duty/Heavy Duty/Trailer/Special Vehicle/Agricultural/Construction makes (1996-2025) in World-wide market.
10+ New High-End Features
Pre & Post Scan
Pro-Post Scanning will record vehicle status before and after diagnostics, helping you to locate problems and list suitable repair plans.
WiFi Printing
Directly print reports in seconds by connecting the same WiFi device with a Printer. No need to open your PC and connect entangled cables.
Cloud Report Management
All diagnostic reports can be uploaded to the cloud server, saving local storage and running faster diagnostic speed, without speed hiccups.
GPS Services
Widely used in automotive navigation. It helps drivers get directions and provides real-time information about their current location.
What's difference between MS908CV II and other CV Scanner?
Autel MS908CV II Specifications
| Operating System |
Android 10 |
| Processor |
Octa-core processor (2.2 GHz quad-core A73 + 1.8 GHz quad-core A53) |
| Memory |
4 GB RAM & 128 GB on-board memory |
| Display |
9.7 inch LED capacitive touchscreen with 2048 x 1536 resolution |
| Connectivity |
· WiFi (802.11 a/b/g/n/ac) |
| · USB: 2.0 |
| · Bluetooth v5.0 + EDR |
| · SD Card (Support up to 64 GB) |
| · HDMI |
| Camera (rear) |
16.0 megapixels; auto focus with flashlight |
| Sensors |
Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output |
· Microphone |
| · Dual Speakers |
| · 3-Band 3.5 mm stereo/standard headset jack |
| Power and Battery |
· 11000 mAh 3.7 V lithium-polymer battery
· Charging via 12 V AC/DC power supply with a temperature between 0 °C and 45 °C |
| Input Voltage |
12 V (9-24 V) |
| Power Consumption |
6.5 W |
| Operating Temp |
0 °C to 50 °C (32 °F to 122 °F) |
| Storage Temp |
-20 °C to 60 °C (-4 °F to 140 °F) |
MaxiSys MS908CV II Package List
- MaxiSys MS908CV II Tablet
- MaxiFlash Elite
- AC/DC Adapter (12V)
- Main Cable
- USB Cable
- Mini USB Cable
- Clipper Cable
- Auxiliary Power Outlet Adapter
- Light Fuse 6*30mm (2pcs)
- OBD II Extension Cable
- UNI-4
- Case including pins: JW1 x2, JW2 x2, JW3 x2, JW4 x2, JW5 x2, JW6 x2, JW7 x2, JW8 x2, JW9 x2, JW10 x2
- Deutsch-9
- Deutsch-6
- USB to Ethernet Adapter
- Quick Reference Quide
- Packing List
- Soft cloth
- Carrying Case
