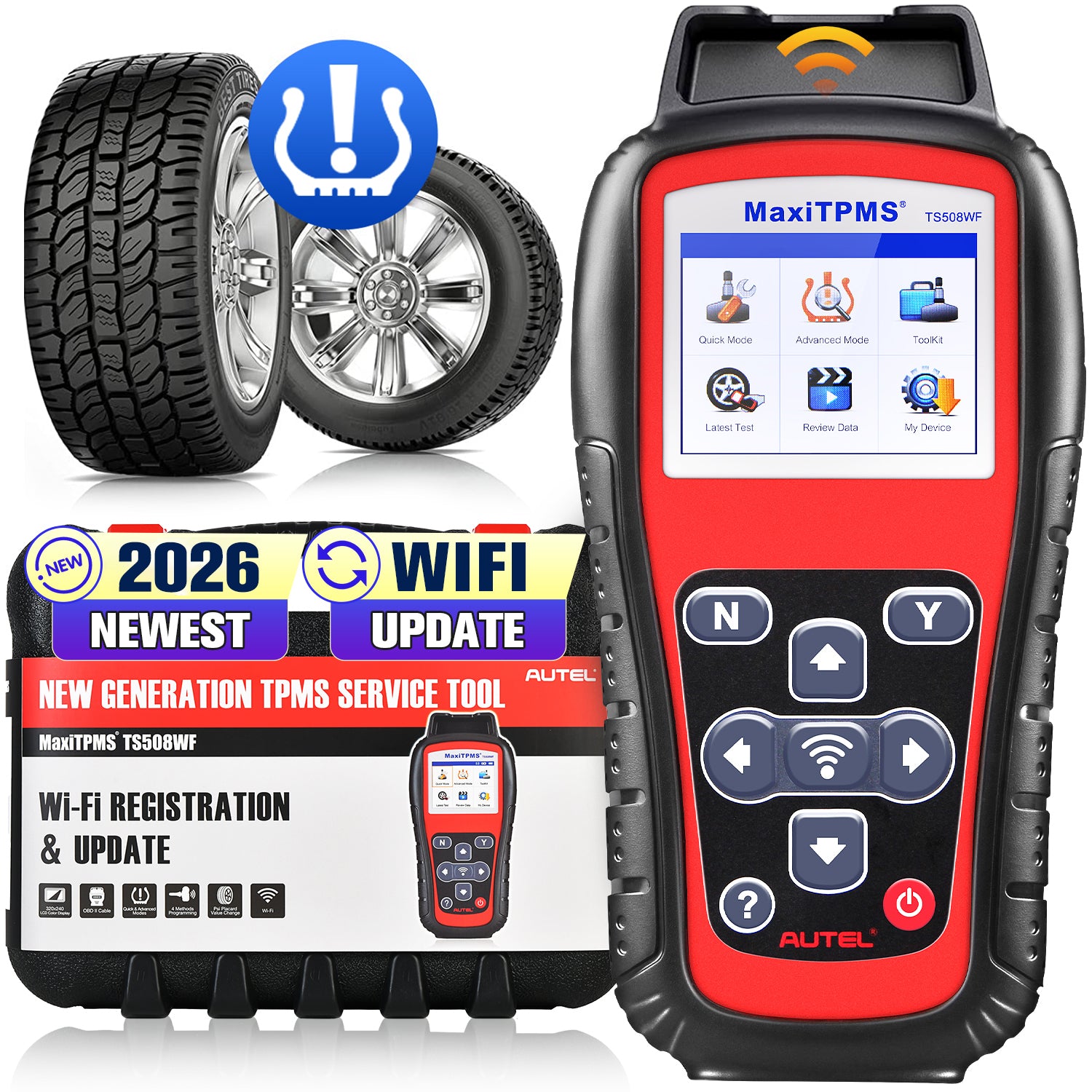

Autel MaxiTPMS TS508WF
The MaxiTPMS® TS508WF is a new generation TPMS diagnostic & service tool specially designed to activate all known TPMS sensors, read TPMS sensor status, check TPMS system health condition, program MX-sensors and conduct TPMS relearn. With Quick Mode and Advanced Mode options, you can save time and energy by choosing the most suitable way to complete TPMS work. The Update by Wi-Fi function helps the update experience more convenient.
Upgraded from TS401/TS408/TS501, 2023 newest MaxiTPM TS508 offers faster and smarter TPMS repairs for Mechanics/DIYERs. It serves almost 99% of cars worldwide and integrates all you want in this powerful TPMS tool.
2023 Newest Upgraded-Wi-Fi UPDATE
Comparing these handheld tool can be connected only by USB, The TS508WF provides two methods for updating: Update by Wi-Fi and Update by USB. The two methods bring customers faster and more convenient updating experience, disencumbering the worries that update must be done with computer. From now on, you only need to be in a Wi-Fi environment!
2 TPMS Service Mode
Autel MaxiTPMS TS508 offers the option to choose one of two service modes , to provide faster and smarter TPMS repairs and decrease repair time,improve work efficiency.
TPMS Quick Mode: Basic TPMS functions to check TPMS sensors and program MX-Sensors quickly;
TPMS Advanced Mode: Complete TPMS functions to perform sensor check , TPMS diagnose, MX-Sensor program and sensor position relearn.
3 Ways to Relearn OEM Sensors
This function is used to write the newly programmed sensor IDs into the vehicle ECU for sensor recognition. TS508WF support 3 ways for Relearn: OBD II Relearn, Automatic Relearn,Stationary Relearn.
OBD Relearn: OBD Relearn is completed via the OBD diagnostic function without needing to drive, and the relearn procedures are basically the same for different models,quite efficient and time-saving(Recommend)
Automatic Relearn:Automatic Relearn requires driving to complete. For some vehicle models, the Automatic Relearn procedures can be completed directly by driving, while for some vehicle models, you need to follow the on-screen Learning Process Guide to let the vehicle enter the Automatic Relearn mode before driving
Stationary Relearn:Stationary Relearn can be completed without relying on driving and OBD diagnostics. To activate this mode, it is usually necessary to perform a series of operations to let the vehicle enter the relearn mode first, then use TPMS tools to perform activation or deflation to complete the relearn.
4 MX-Sensor Programming Options
This function allows to program the sensor data to the Autel MX-Sensor and replace faulty sensor with low battery life or the one that is not work. There are 4 ways to program MX-Sensor: Copy by Activation/OBD/INPUT/Auto Create. (Note:Programming function will only work with Autel MX-Sensor)
Copy by OBD: The tablet will program the sensor IDs retrieved from the ECU of the test vehicle to the new MX-Sensors.
Copy by activation: This function allows the user to copy the retrieved sensor ID from the activated sensor to the new MX-Sensor. It is used after the original sensor is triggered.
Copy by Input:This function allows users to program a new MX-Sensor with the ID of an original TPMS sensor.
Auto Create 1-16 Sensors:This function is used to automatically create a random sensor ID to program a new MX-Sensor.
Diagnosis TPMS System & Read TPMS Sensor Info.
TS508WF can let you know the vehicle by one step for complete check the status of the TPMS system,DTC Details/Clear DTCs/Live Data/Retry Diagnosis.The sensor check function allows the activation of TPMS sensor to view sensor data such as sensor ID, tire pressure, sensor frequency, tire temperature, sensor battery, and sensor position. It also sends the sensor data to vehicle’s ECU to let the ECU learn the positions of sensors whenever wheels are rotated or sensors are replaced.
Why Choose Autel MaxiTPMS TS508WF
No IP Blocking - You Can Use TS508WF all over the world
Easy TPMS Relearn& Resetting - TS508WF Provides users with reading/writing sensor IDs on vehicle ECU and reading/ clearing codes of TPMS system, and to save data for later reviews and printing.
Fast TPMS Sensor Activate - With Autel TS508WF, you can wirelessly activate all OEM/Universal TPMS sensors on the market, helping you easily get sensor data like sensor ID, tire pressure, tire temperature, sensor battery, sensor position, frequency, etc.
Multiple mode selection - With Quick Mode and Advanced Mode options, the most fast way to complete TPMS work
As the Upgrade Version of TS501/TS508- Autel MaxiTPMS TS508WF can diagnose newest models up to 2023 And it packed ALL TPMS service
Lifetime Warranty - Software Lifetime Free Update Warranty/It has already saved you hundreds in trips to the mechanic for diagnostics and resets
Supports Multi-language - English, Spanish, French, Dutch, German, Swedish, Polish, Korean, Japanese, Italian
Professional Costumer Services- Respond and solve your problems within 8 hours👉Contact Us👈
Autel MaxiTPMS TS508WF Features:
- Vehicle Specific Database
- Auto Selection of Frequency for Fast Scanning
- Two TPMS Service Modes to Use
- Quick Mode for Fast Installs designed for tire / wheel shops
- Advanced Mode To diagnose, repair and replace TPMS for repair shops
- TPMS Status Screens for Easy Diagnosis
- Shows ID matching in color
- Low Sensor Battery Indicator
- Code Notification
- Information - relearn procedures at the touch of help button
- Batch Programming - Program multiple sensors with one touch (up to 16 sensors at a time)
- Programs vehicle ECU to learn sensor IDs and positions
- Activates ALL magnetic, frequency and tire deflation triggered sensors using 125Khz continuous or modulated waive signals
- Receives both 315MHz and 433MHz signals
- Reads / writes sensor IDs from vehicle ECU
- Reads / clears DTC's of TPMS and resets Malfunction Indicator Light
- Programs Autel MX-Sensors 315MHz or 433MHz wirelessly
- Checks Remote Keyless Entry (Key FOB) for transmissions
- Reads Data including sensor IDs, tire pressure, temperature, battery condition.
- OEM Part number and relearn information
- Displays different sensor relearn procedures for different OEM sensors
- OEM sensor information display based on vehicle Make/Model/Year
- Displays OBD locations for test vehicles
- Pre-selection process offers faster activation and diagnostics
- Provides visual and audible responses to confirm sensors are working properly
- On-screen code definitions
- Incredibly easy-to-use with intuitive navigation and step-by-step on-screen instructions
- Proper LF signal to prevent being fooled by other RF signals
- Built-in rechargeable 3.7 v Li-polymer battery
- Automatic power-off to preserve battery life
- Free Lifetime updates on the internet using USB port
- Ergonomic design features strong housing and protective rubber boot
- TFT Color Display (320 X 240 dpi)
Autel MaxiTPMS TS508WF Specifications:
- Display: TFT color display (320 x 240 dpi)
- Power: 3.7 V Li-polymer battery; 3200 mAh
- Operating Temp.: 0°C to 50°C (32°F to 122°F)
- Storage Temp.: -20°C to 70°C (-4°F to 158°F)
- Sensors: 215 mm (8.46”) / 105 mm (4.13”) / 37 mm (1.46”)
- Weight: 0.39 kg (0.86 lb.)
Autel MaxiTPMS TS508WF Package Including:
- 1pcs x TS508WF main unit
- 1pcs x User manual
- 1pcs x Main cable
- 1pcs x USB cable
- 1pcs x Carry case
- 1pcs x AC Adapter
- 1pcs x Wrench
- 1pcs x Magnet
Q: If I buy a product, where will it be shipped from? Do I need to pay any other fees?
A: We have France, Germany, Spain warehouses in Europe. If you are located in the EU, the logistics time is 3-5 days, Free shipping, you don't need to pay other fees.
Q: Warranty ？
A: 1 Year
Q: How can I make sure the product will work properly in my vehicle? If something goes wrong, can I return it?
A: Our products can be used on any OBD2 compliant vehicle, with the difference that partial reset services and advanced features are only available on some brands of vehicles. So, to ensure your shopping experience, please send the VIN of your vehicle and your needs to our Email--👉Contact us👈, we will reply you within one working day.
We guarantee 30 days no reason to refund, if it is not due to quality problems, you need to pay for the postage.
