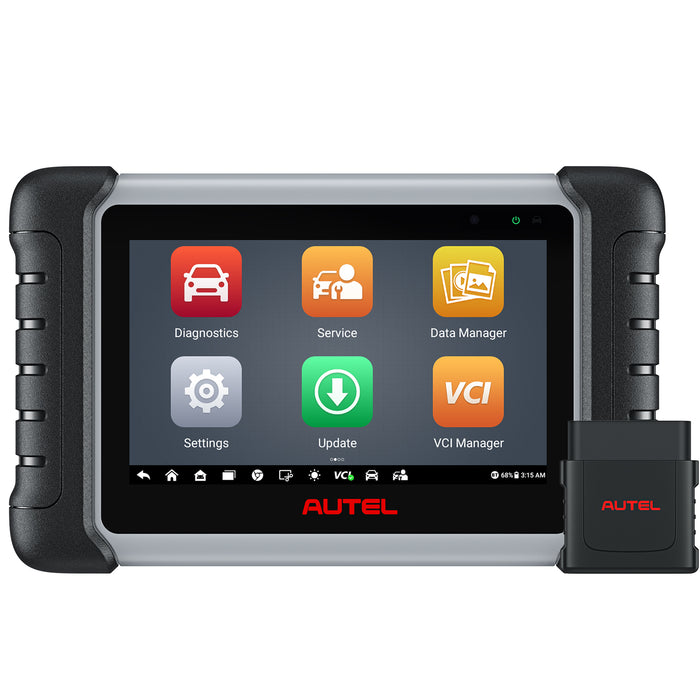

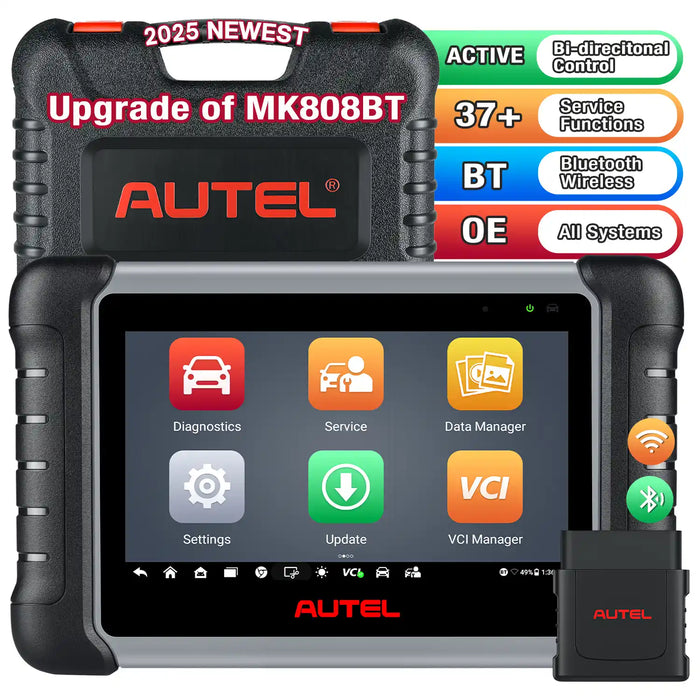

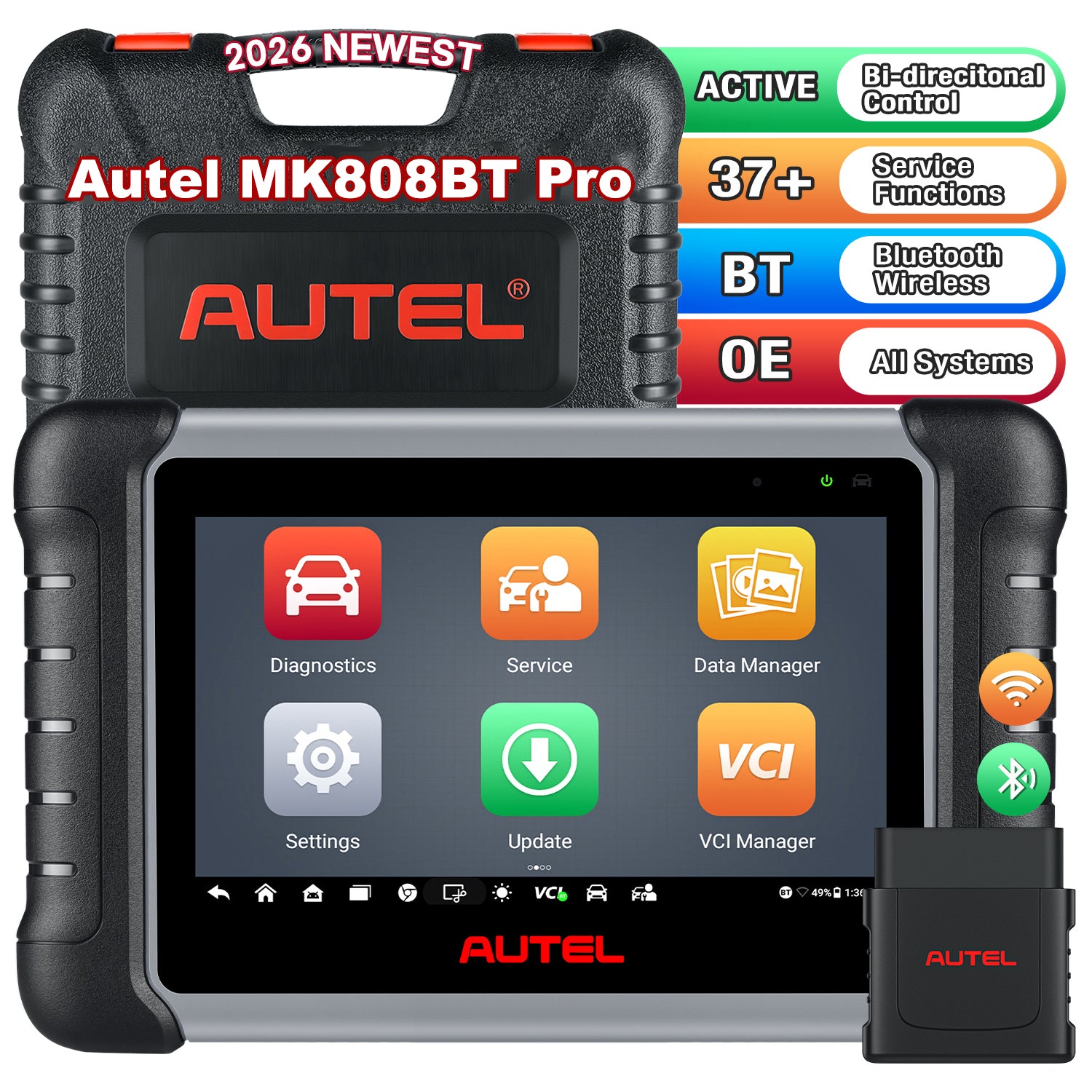

2023 New Released- Autel MaxiCOM MK808BT Pro
Autel Maxicom MK808BT Pro is the updated version of Maxicom MK808BT, Based on the Android.11 multitasking operating system, and combined with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, the Maxicom MK808BT Pro is your ideal auto diagnostics and service tool, providing you with superior functions.

Upgraded Hardware:
Comparing to MK808BT, MK808BT Pro has upgraded hardware
2023 newest Android 11 OS can realize multitasking operation without pressure, 5X faster
ROCKCHIP RK3566 CPU perform diagnostics quickly and efficiently
4GB RAM & 64GB ROM to save more vehicle documents and customer data
Dual-2.4GHz&5GHz , the transmission rate is 4 times faster than the old version.
2023 Latest upgraded functions
Active Test/Bidirectional Control:Can send commands to the vehicle’s ECU to control actuator for test, This test determines the integrity of the system or parts by reading the engine ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay, or switch, between two operating states.such as turn on/off A/C clutch,windows up/down,rear mirror fold/unfold,fuel injectors, etc.

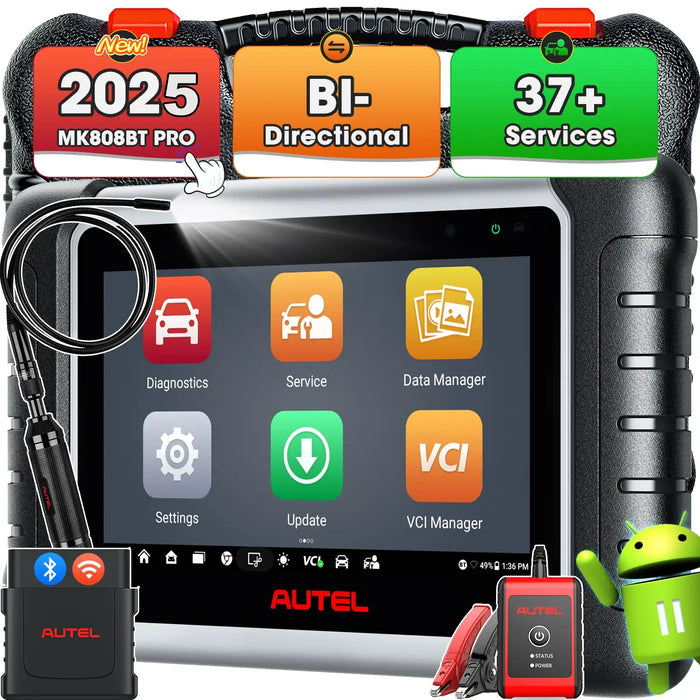

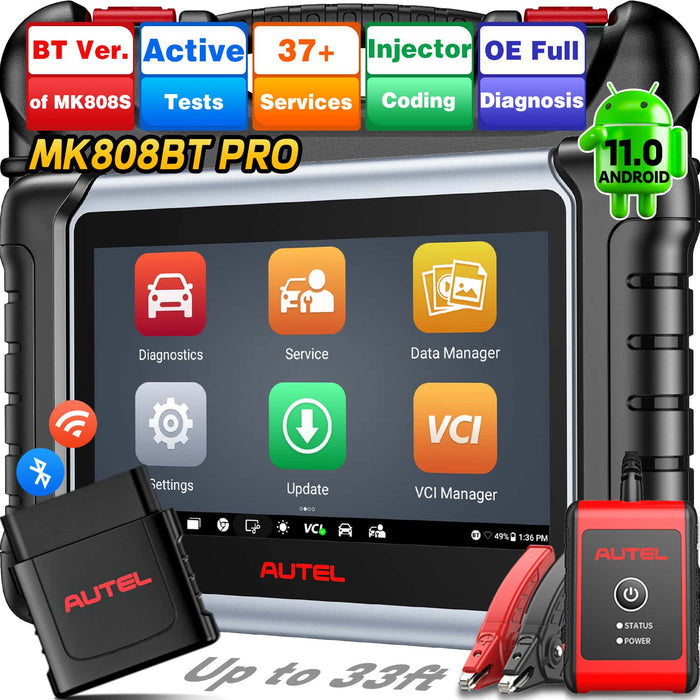

Battery Test : With Autel BT506,The Battery Test BT506 allows you to perform in-vehicle battery test and out-vehicle battery test functions when it is connected to the MK808BT Pro and a battery. Enables technicians to view the health status of the vehicle's battery and electrical system.(Choose set MK808BT Pro+BT506)

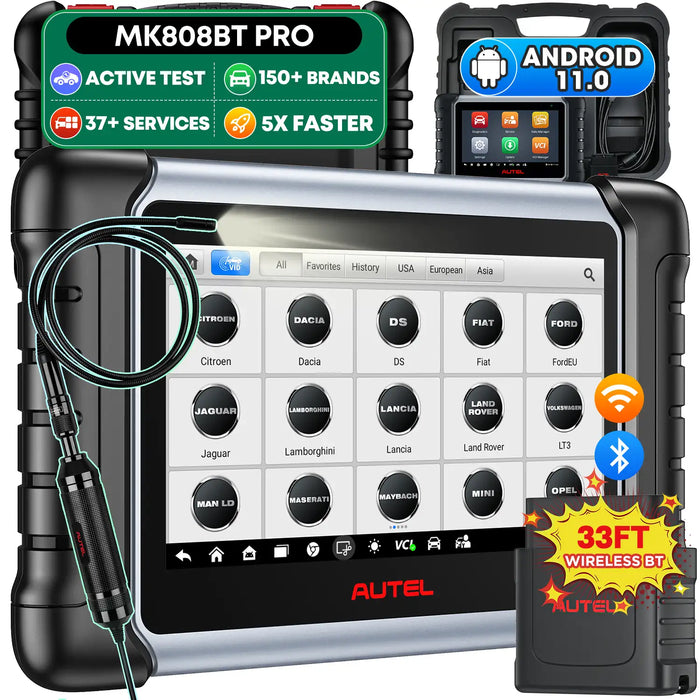

Digital Inspection: With Autel MV108, This allows you to examine difficult-to-reach areas normally hidden from sight,with the ability to record digital still images and videos, in a safe and quick way.(Choose set MK808BT Pro+MV108)
Special Fuctions :Expand special functions like initial adaptation, self-learning, auto-detection ,Crankshaft position sensor learn etc. It’s a big help in performing resets after significant repairs.

OE-Level All System Diagnosis
MK808BT Pro can Read and Erase Codes on all available vehicle systems,Exceptional OE-Level system coverage for all electronic systems,View Freeze Data and view and graph Live Data, Compatible with U.S., European vehicles, 1996 and newer.
Read Codes: This function retrieves and displays the DTCs from the vehicle’s control system. The Read Codes screen varies for each vehicle being tested. On some vehicles, freeze frame data can also be retrieved for viewing.
Erase Codes: After reading the retrieved codes from the vehicle and certain repairs have been carried out, you can decide to erase the codes from the vehicle using this function.
Live Data:This function displays the real time PID data from ECU. Displayed data includes analog inputs and outputs, digital inputs and outputs, and system status information broadcast on the vehicle data stream.

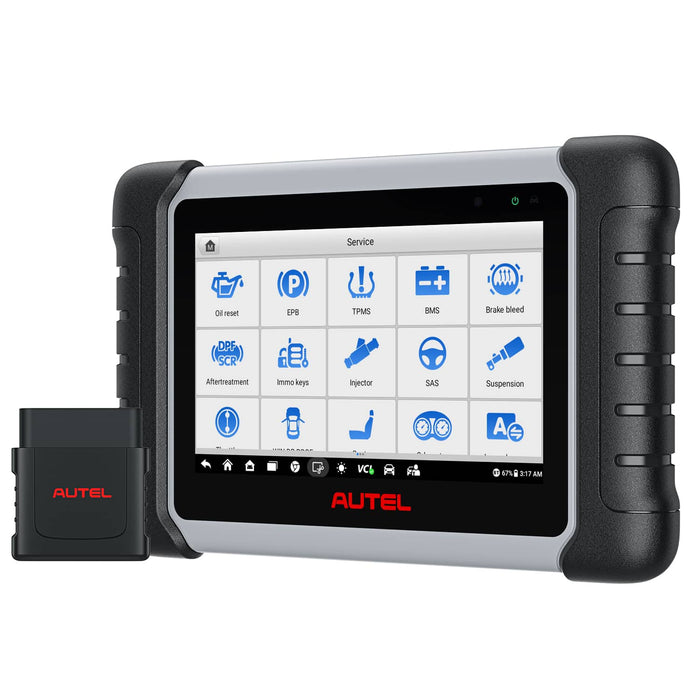

37+ Advanced Hot Reset Functions
As a pro-grade automotive diagnostic scanner. MaxiCOM MK808BT Pro auto scanner also provides you with superior special functions, including
Oil Reset: Reset the oil change calculator in the engine and automatic transmission
EPB(Electronic Parking Brake):Replacement of brake pads on vehicles with an electric parking brake
SAS(Steering Angle Sensor):Adaptation of the sensor to the angular position of the steering wheel
BMS(Battery Management System):Battery registration and reset
ABS bleeding(Anti-skid Brake System): Get a firm brake pad after air exhaustion
DPF(Diesel Particulate Filter):For Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
Seats, Odometer, Injector, CHG tire size, TEC Learn, Suspension, Throttle, WIN OR ROOF, Language Change, Headlamp.
Note: The reset service feature is not available on all models. Pls send VIN and your needs to us to check.
Bluetooth Connection
MK808BT Pro equipped with wireless BT technology,up to 33ft(10m) working range, enabling wireless diagnostic with more stable and faster data transmission. This way you can check any part of your car while holding the MK808BT Pro.

Why Choose Autel MaxiCOM MK808BT Pro?
-
OE-Level Diagnosis - MK808BT Pro is an automotive diagnostic scanner that can access all available ECU modules. And performs OE-Level diagnosis
-
Multi-Brand Diagnosis-Widely vehicle coverage of more than 80 American, Asian and European vehicle makes and models.
-
Upgraded of Autel MK808BT-MK808BT Pro upgraded hardware ,and with more services
-
38+ Service Functions - MaxiCOM MK808BT Pro has 38+ service functions options, mainly including Oil Reset, EPB service, ABS Auto Bleed, SAS Calibration , DPF Regeneration and etc
-
Auto VIN : Automatically identify the vehicle’s make, model, and year information
-
Multi-Language Support - Autel MaxiCOM MK808BT can switch multiple working languages, including English, German, French, Spanish, Russian, Portuguese, Polish, Italian, Swedish,Dutch
-
Bluetooth Connection - Autel MK808BT is with a wider range of use and a more stable connection.
-
1-Year Free Software Update&1 Year Warranty - After you register and log in, you can enjoy a free software upgrade for one year. After one year, if you do not choose to continue to purchase the upgrade service, it will not affect the normal use of the device
Autel MaxiCOM MK808BT Pro Main Features
- Support wireless Bluetooth connection
- Extraordinarily powerful Rockchip RK3566
- 7-inch LCD capacitive touchscreen with 1024 x 600 resolution display
- Internal reliable 64GB On-board Memory for better performance
- Unique ergonomic design with rubberized outer protection and a rugged internal housing
- Android 11 KitKat Operating System for fast boot-up and multitasking
- Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
- Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc.
- Smart Auto VIN technology for identifying vehicle easily
- Automatic system and software updates with real-time push message notifications via internet
- Instant remote control tech support anytime, anywhere
- Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
- Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
- One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
- Enhanced wireless BT connectivity between the display tablet and VCI device allows greater mobility and ease at work
- Convenient data management system for managing internal program applications and reviewing data

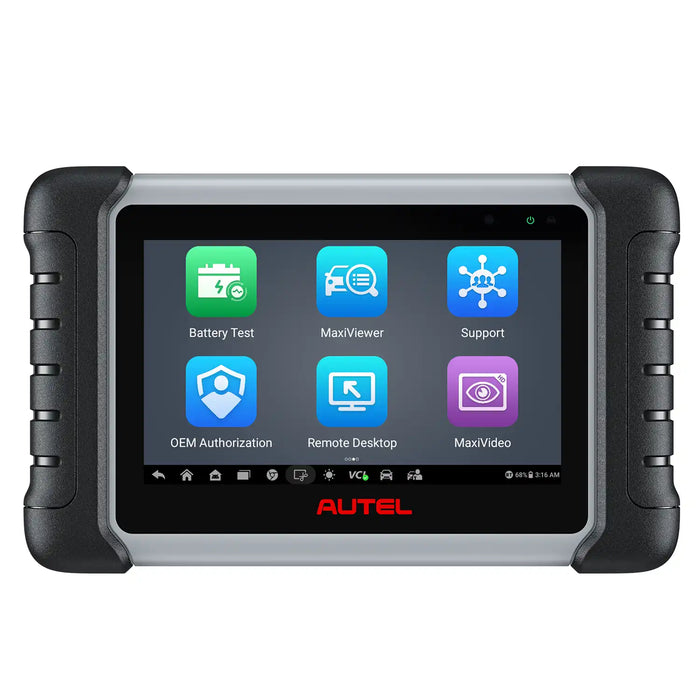

Autel MaxiCOM MK808BT Pro Additional Functions
MK808BT Pro remote technical support with the help of which Autel technical engineers get access to the MaxiCOM MK808BT Pro diagnostic scanner remotely, which greatly simplifies the maintenance of diagnostic equipment, shortens the processing time of applications.
-
Shop Manager – With a Autel MK808BT Pro you can well manage the workshop information with 3 available functions within this application: Vehicle History, Workshop Information, and Customer Manager. Intuitively look up the summarized details.
-
Data Manager – MaxiCOM MK808BT Pro provides the best solution for the data related operations, saves customer and vehicle records, scanner data and technician notes for future review, you can store, print, and review the saved files in Image, PDF, Review Data, Apps Uninstall or Data Logging.
-
Remote Desk – Autel MaxiCOM MK808BT Pro Supports Remote Technical, you can directly get ad-hoc remote support from Autel via Team Viewer software.
Autel MaxiCOM MK808BT Pro Specifications:
Recommended Use: |
Indoor |
Operating System: |
Android™ 11, KitKat |
Processor: |
Cortex-A9 processor(1.5GHz) |
Memory: |
64GB |
Display: |
7-inch LCD capacitive touchscreen with 1024x600 resolution |
Connectivity: |
Mini USB 2.0; USB2.0; Wi-Fi; HDMI Type A; Micro SD card slot(supports up to 32GB) |
Sensors; |
Light sensor for brightness auto changing |
Audio Input/Output: |
Input: N/A, Output: buzzer |
Power and Battery: |
3.7 V/5000 mAh lithium-polymer battery Charges via 5 VDC power supply |
Tested Battery Life: |
Around 7 hours of continuous use |
Battery Charging Input : |
5V/1.5A |
Power Consumption: |
600 mA(LCD on with default brightness, Wi-Fi on)@3.7 V |
Operating Temp.: |
0 to 55°C(32 to 131°F) |
Storage Temp.: |
-20 to 60°C (-4 to 140°F) |
Operating Humidity: |
5%-95% non-condensing |
Dimensions (W x H x D): |
237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”) |
Net Weight |
788 g (2.42 lb.) |
Protocols |
ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, SAE J2610,GM UART, Honda Diag-H Protocol, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), UART Echo Byte Protocol, TP2.0, TP1.6 |

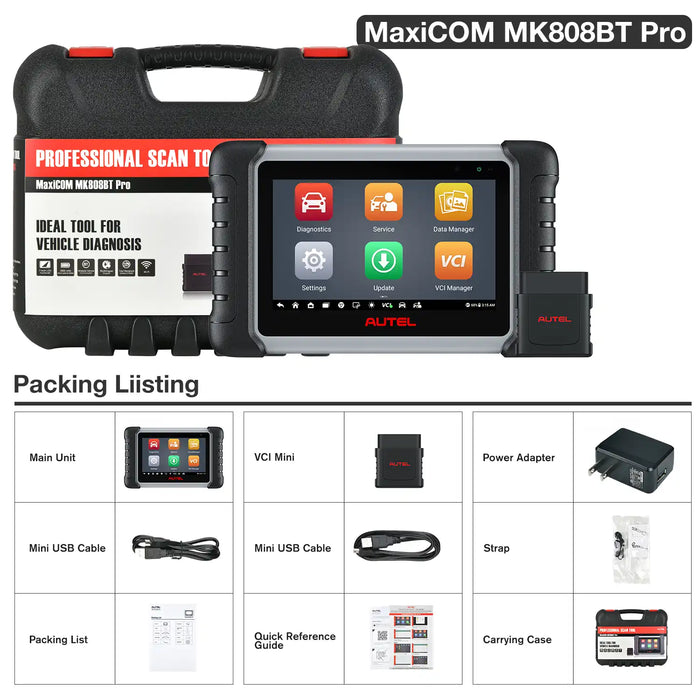

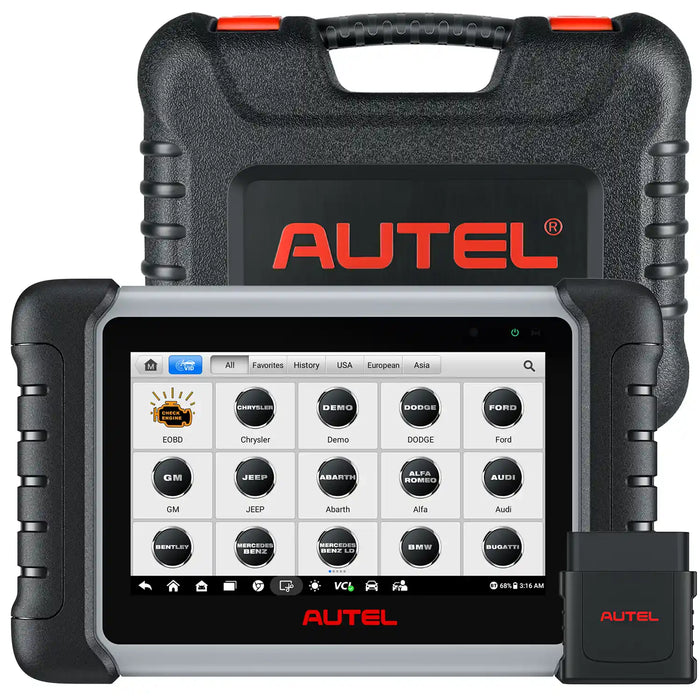

Autel MaxiCOM MK808BT Pro Package List
- 1 x MK808BT Pro Tablet
- 1 x MaxiVCI Mini
- 1 x Power Adapter
- 1 x USB Cable(for testing)
- 1 x USB Cable(for charging)
- 1 x Strap
- 1 x Quick Reference Guide
- 1 x User Manual
- 1 x Carring Case

FAQ
Q: What's the difference between MK808BT Pro and MK808BT?
A: MK808BT Pro has upgraded hardware in RAM/CPU/OS/Wifi
Q:Warranty ?
A: 1 Year
Q:Free softeare update?
A:1 Year.If you don't update after 1 year ,it still can work normally,just cann't update to latest function.
Q:How much will cost after one year free update?
A:Right now ,the one year price for mk808bt pro update is €109
Q:Can i put my company info on invoice?
A:Yes,we can put info as your request
Q:Technical support?
A:Yes,lifetime,we can provider technical support from autel official
Q:Can i use this machine with my language?
A:This is multi-language ,support: English,German, Spanish, Portuguese,French, Polish, Italian, Japanese etc.
Q:How to change language?
A:Please send us your machine S/N number (on the machine back),and after we add language ,please make sure update all software in this language version.
