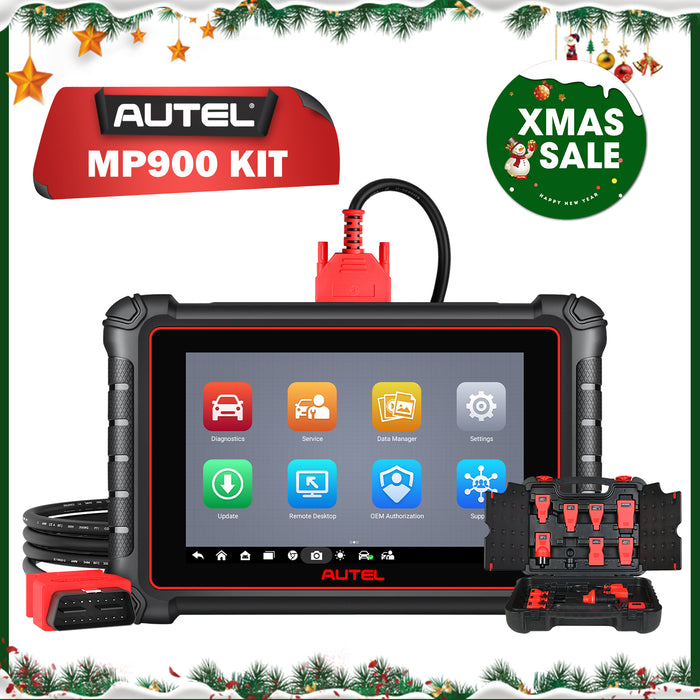

Autel Newest diagnosis scanner-Autel Maxipro MP900 Kit, MP900 with a box of obd adapters,Can meet small/medium workshop need.It has extensive vehicle coverage for EU/USA/Asian from year 1996 to 2024, Exceptional OE-Level system coverage for all electronic systems,Advanced ECU coding to enable or disable certain features or functions/enhanced control/ customize features/improve performance.Support 40+ reset and maintenance service,and support the latest communication protocols, including DoIP and CAN FD. It also has some applications for a workshop ,such as Data Manager/Post Scan· Reports/Wifi print.
Upgrade from MP808 Series, MP900 Kit has excellent hardware ✅Android 11.0(Newest)✅8 inches screen(Bigger Screen)/1280*800 Screen resolution(Clearer data and image) ✅7700 mAh battery(Work longer time)✅Rear Camera 8M(With more Scan function)✅RAM+ROM 4GB+64GB.
Advanced ECU Coding
Autel MP900 Kit car diagnostic tool with higher-level ECU coding same as MS906.It can work on BMW, VW, and Porsche to code/ learn/ match the replaced ECUs, activate hidden features, disable some annoying functions, customize cars by driving habits, and easily solve ECU. VAG Guided provides step-by-step guides for VW/ Audi/ Skoda/ Seat/ Man LD.
Accessing Manufacturer-Specific Codes: provide access to manufacturer-specific codes, allowing users to perform coding functions that are specific to particular vehicle makes and models. This includes accessing hidden features or customizing various parameters within the ECU.
Enabling/Disabling Vehicle Options: With Autel scanners, users can enable or disable specific options or features within a vehicle. For example, they can activate or deactivate functions like auto-locking doors, daytime running lights, or seat belt reminders. This level of customization allows users to tailor their vehicle's behavior according to their preferences.
Performance Tuning: Autel scanners offer performance tuning capabilities, allowing users to enhance the performance of their vehicles. This includes adjusting engine parameters, such as fuel-to-air ratio, ignition timing, boost pressure, or throttle response. By optimizing these settings, users can improve power output, fuel efficiency, or overall driving experience.
Coding Retrofits: Autel scanners support coding retrofits, which means users can add new components or modules to their vehicles and code them into the existing ECU. For example, if a user wants to install aftermarket headlights, they can code the ECU to recognize and control the new headlights properly.
Auto Scan Full System Diagnosis
Autel MP900 Kit supports four methods for vehicle identification: Auto VIN Scan, Manual VIN Input, Automatic Selection, and Manual Selection, through which you’re able to access all the diagnosable ECUs on the vehicle and run diagnostics on the selected system.
Read Codes: This function retrieves and displays the DTCs from the vehicle’s control system. The Read Codes screen varies for each vehicle being tested. On some vehicles, freeze frame data can also be retrieved for viewing.
Erase Codes: After reading the retrieved codes from the vehicle and certain repairs have been carried out, you can decide to erase the codes from the vehicle using this function.
Live Data:This function displays the real time PID data from ECU. Displayed data includes analog inputs and outputs, digital inputs and outputs, and system status information broadcast on the vehicle data stream.
With the bi-directional control, it’s easy and quick for you to identify the problems as the diagnostic tool is able to transmit control commands to operate the vehicle systems and tell you the running conditions.
Advanced Bi-directional Control/Active Test
The Active Test function is used to access vehicle-specific subsystem and component tests.During an active test, the tablet sends commands to the ECU in order to drive the actuators. This test determines the integrity of the system or parts by reading the engine
ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay, or switch, between two operating states. Autel MP900 Kit has finished over 3000+ autuator test for all kinds of ECU command.
40+ Special Reset Services
Autel MP900 Kit diagnostic scanner is a professional tool aiming at providing mechanics and DIY enthusiasts with access to the systems to perform various maintenance and services.
-
Oil Service Reset – MP900 Kit performs reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate, and turns off the warning light;
-
EPB Service – MP900 Kit initializes the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately;
-
ABS/SRS Services – MP900 Kit performs various bi-directional tests to check the operating conditions of both the Anti-lock Braking System and the Supplemental Restraint System;
-
SAS Service – MP900 Kit performs steering angle adjustment, clears steering sensor fault memory and turns off steering wheel warning light;
-
DPF Regeneration Service – MP900 Kit clears particulate matter from the DPF filter to stabilize the filter performance.
Note: The reset service feature is not available on all models. Pls send VIN and your needs to 👉Contact us👈to check.
Added Functions
Digital Inspection with MV108S/MV105S :This allows you to examine difficult-to-reach areas normally hidden from sight, with the ability to record digital still images and videos, in a safe and quick way.
Autel MP900 Kit Helpful Functions For Mechanics & Auto Repair Shops
-
MaxiFix – Autel MP900 Kit comes with an online troubleshooter database that provides you with all common DTCs database for most vehicles and allows you to network with other users.
-
Shop Manager – MaxiPro MP900 Kit owns an application that helps you deal with the daily workshop business and improve customer service by helping you manage the workshop information, customer information records, and much more.
-
Data Manager – MP900 Kit Supports to store, print, and review the saved files.
Why Choose Autel MaxiPRO MP900 Kit?
-
No Blocking - You can use MP900 Kit all over the world
-
Advanced ECU Coding-It can work on BMW, VW, and Porsche to code/ learn/ match the replaced ECUs.
- 1-Years Free Software Update
-
Cost-Effective Choice - Same as MS906, Cost Less for MS906, Autel MP900 Kit gets almost the same diagnostic functions and services. MP900 Kit professional scanner comes with 40+ services like: ABS Bleed, Oil Reset, EPB Reset, SAS Calibration,etc.
-
OE-Level All Systems Diagnosis -MP900 Kit can access all systems on 80+ US, EU and Asian car makes to read and clear codes, view live data and graph, perform active tests and vehicle-specific service functions
-
Bi-dirctional Control - with bi-directional control (active test) capability over various car systems, and components like solonoids, relay, switch, valves, sunroof, window, door and perform active test
-
Support Multi-language - MP900 Kit supports up to 13 languages. Default language is English,After you receive the machine ,send us the S/N number ,we can change language as you requested
Autel MaxiPRO MP900 Kit Specification:
| Operating System: |
Android™ 11.0, KitKat |
|
|
| Memory: |
4GB RAM & 64GB On-board Memory |
| Display: |
8-inch LCD capacitive touchscreen with 1280x800 resolution |
| Connectivity: |
Mini USB 2.0; USB 2.0; Wi-Fi; Micro SD card (supports up to 64GB) |
| Sensors: |
Ambient light sensor for brightness auto changing |
| Audio Input/Output: |
Input: N/A; Output: buzzer |
| Power and Battery: |
3.7 V/7700 mAh lithium-polymer battery
|
| Tested Battery Life: |
Around 4.5 hours of continuous use |
| Battery Charging Input: |
5 V/1.5 A |
| Power Consumption: |
500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V |
| Operating Temp.: |
0 to 55°C(32 to 131°F) |
| Storage Temp.: |
-20 to 60°C (-4 to 140°F) |
| Operating Humidity: |
5% - 95% non-condensing |
| Dimensions (W x H x D): |
237.8 mm (9.4") x 148.6 mm (5.9") x 35.5 mm (1.4") |
| Net Weight |
788 g (1.74 lb.) |
| Protocols |
ISO9141-2,ISO14230-2,ISO15765,K/L-Line,Flashing Code,SAE-J1850 VPW,SAE-J1850PWM, ISo11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN,fault-tolerant CAN)，SAE J2610,GM UART UART Echo Byte Protocol，Honda Diag-H Protocol,TP2.0,TP1.6 |
Autel MaxiPro MP900 Kit Package List:
- 1x MaxiPro MP900
- 1x Box of OBD Adapters
- 1x Power Adapter
- 1x Mini USB Cable
- 1x Main Cable
- 1x User Manual
- 1x Quick Reference Guide
FAQ
Q: If I buy a product, where will it be shipped from? Do I need to pay any other fees?
A: We have France, Germany, Spain and other warehouses in Europe. If you are located in the EU, the products will be dispatched from the Germmany warehouse, the logistics time is 3-5 days, Free shipping, you don't need to pay other fees.
Q: When does the 1-year free upgrade start to count? Will normal use be affected if I do not purchase the upgrade service after one year?
A: The 1-year free upgrade service for each device starts when you register and log in to your account, and you can check the expiration time in the settings. After one year, if you do not continue to purchase the upgrade service, it will not affect your normal use of Autel devices, but you will not be able to update the latest upgraded functions.
Q: How can I make sure the product will work properly in my vehicle? If something goes wrong, can I return it?
A: Our products can be used on any OBD2 compliant vehicle, with the difference that partial reset services and advanced features are only available on some brands of vehicles. So, to ensure your shopping experience, please send the VIN of your vehicle and your needs to our Email--👉Contact us👈, we will reply you within one working day.
We guarantee 30 days no reason to refund, if it is not due to quality problems, you need to pay for the postage.
