Autel 2023 Newest TOP Intelligent Diagnostics—Autel MaxiSYS Ultra EV
The Autel MaxiSys Ultra EV is a new generation of intelligent diagnostics for electric, hybrid, gas, and diesel vehicles. The Ultra EV provides a comprehensive analysis of electric and hybrid vehicles with expanded topology mapping and battery pack analysis that can be performed via OBD or directly with included specialty cables and jumpers.
High Voltage System Diagnosistic—Customize For New Energy Vehicles
The MaxiSys Ultra EV can perform comprehensive diagnostics on new energy vehicles.After establishing communication with the ECU on a new energy vehicle through the VCMI device, the tablet is able to read or clear DTCs, read live data, perform active test,programming, and intelligent diagnostics, and more. The tablet can perform diagnostics on high voltage system of new energy vehicles through communication with their electronic control system. Based on the diagnostic results, the tablet will provide professional maintenance suggestions to the battery and offer targeted and high-efficient solutions.
Offline Battery Pack Diagnostics
Using the Autel EVDiag Box, Ultra EV is able to establish communication with the vehiclebatteries to perform the Battery Pack Test function.The Battery Pack Test function has a vehicle mode, which enters diagnostic interfacethrough selecting vehicle information. The battery pack data, including SOC/SOH, totalvoltage, total current, pack voltage delta, and temperature can be viewed on this mode.Ultra EV supports the battery pack test of mainstream vehicles such as Tesla, BMW, GM,Audi, BYD, Honda, Toyota, Lexus, etc. The actual function menu may vary amongdifferent vehicles.

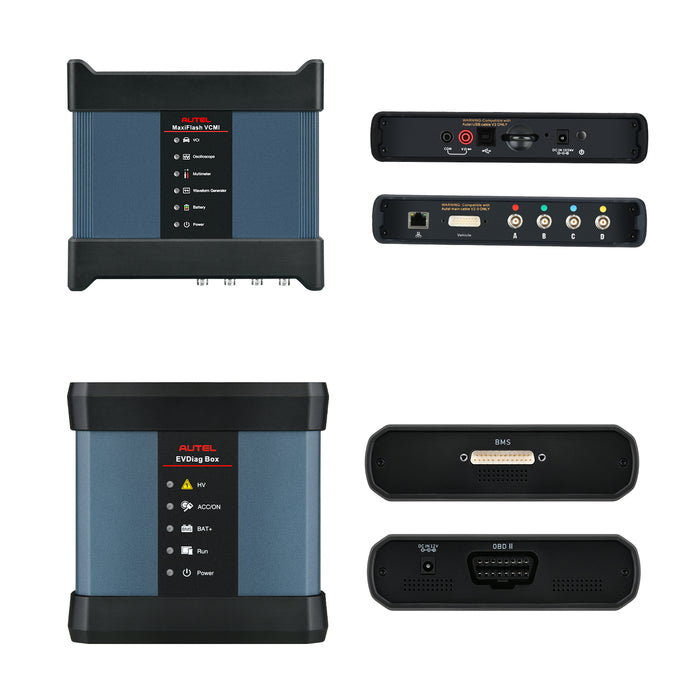

Advanced 5-IN-1 VCMI
Autel Maxisys Ultra EV combine five powerful devices into one: J2534/D-PDU/CAN-FD/RP1210/Do IP,Which value over €2000!Bring maximum convenience to your work!
Oscilloscope: Show how a signal varies with time in a graphical way
Waveform Generator:Simulate the signals of automotive electronic components
CAN BUS CHECK:Check whether the control units in vehicle's electronic control systems work properly or not
Multimeter: Test voltage,current,resistance,frequency,diode,duly cycle,etc.
VCMI Manager: Pair the tablet with the VCMI device and to check the communication status.
2nd Generation Intelligent Diagnostics and Topology Map
As 2023 Autel Top and Professional Scanner,Maxisys Ultra EV upgraded the topology map function and intelligent diagnosis,More Specifically,More Accurately,Higher Efficiency.To help technicians to solve issues quickly,improve 90% efficiency.DTC Analysis provides repair assistance suggestions,can follow step by step guidence,
EUC Programming and Coding
EUC Programming: Autel Maxisys Ultra EV comes with J2534 ECU programming device for BENZ/BMW all chassis,Which is capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new Benz/BMW ECUs and fixing software-controlled drivability issues and emission issues, update the computer software on the vehicle to the latest version.
EUC Coding:Support Online coding for Benz/BMW/Audi/Porsche/VW/Nissan etc.Refresh hidden function for VW/Audi/Skoda.Disable annoying functions ,Customize configurations to enhance vehicle performance.
40+ Maintance and Reset Services
Autel Maxisys Ultra EV supports the most 40+ special services on 99% vehicles on the market,including EPB Reset, SAS Calibration, Battery Reset, Throttle Reset, ABS Bleed, Injector Coding, Power Balance, Key Coding, Suspension Calibration, VGT Turbo Calibration, Transmission, Headlamps, Window Door Roof etc.
Battery Tester with Aute BT506: With Autel BT506,Autel Maxisys Ultra EV can do complete battery & starting and charging system tests and display the test results.
Digital Inspection with MV108 :This allows Autel Maxisys Ultra EV to examine difficult-to-reach areas normally hidden from sight,with the ability to record digital still images and videos, in a safe and quick way.
Bi-Directional Control:Send commands to the vehicle’s ECU to control actuator for test, such as fuel pump, fuel injectors, A/C, reset control unit, and other bi-directional tests.
World-Wide Vehicle Coverage
Autel MaxiSYS Ultra EV Specifications:
||Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
||4GB RAM & 256GB On-board Memory
||12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO)
BT v.2.1 + EDR
USB 2.0 (Two USB HOST Type A, one USB mini device)
SD Card (Support up to 256GB)
||Gravity Accelerometer, Ambient Light Sensor (ALS)
|Power and Battery
||0 to 50°C (32 to 122°F)
||-20 to 60°C (-4 to 140°F)
||366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")
||2.18kg (4.81 lb.)
|DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

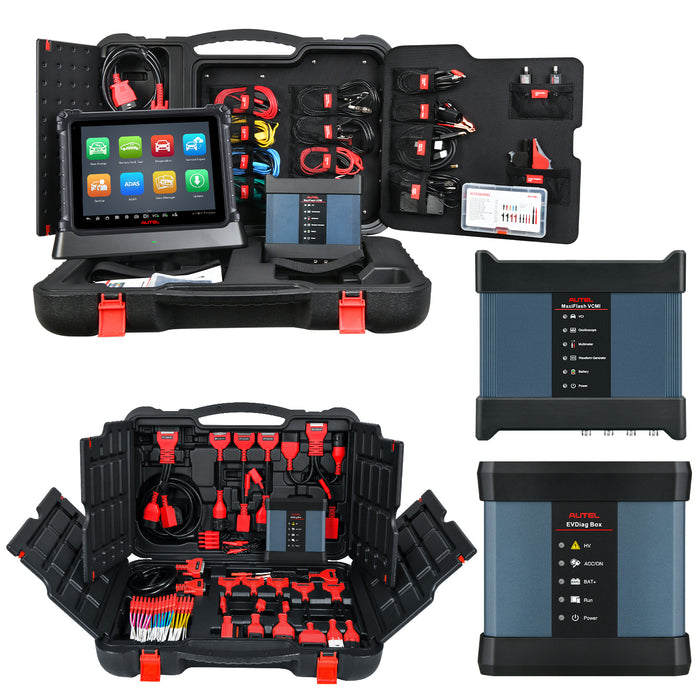

Autel Maxisys Ultra EV Packing List
